ArcGlide THC Instruction Manual 5-5
PARTS
Item Part number Description Quantity
1 228589 Kit: LCD display 1
2 228583 Kit: Momentary pushbutton switch 1
3 228590 Kit: 120 VAC, 5 V, 5 amp, 25 W power source 1
4 228579 Kit: 230 V Surge PCB 1
5 228581 Kit: HMI processor PCB 1
6 228582 Kit: HMI 7-segment display PCB 1
2
4
5
6

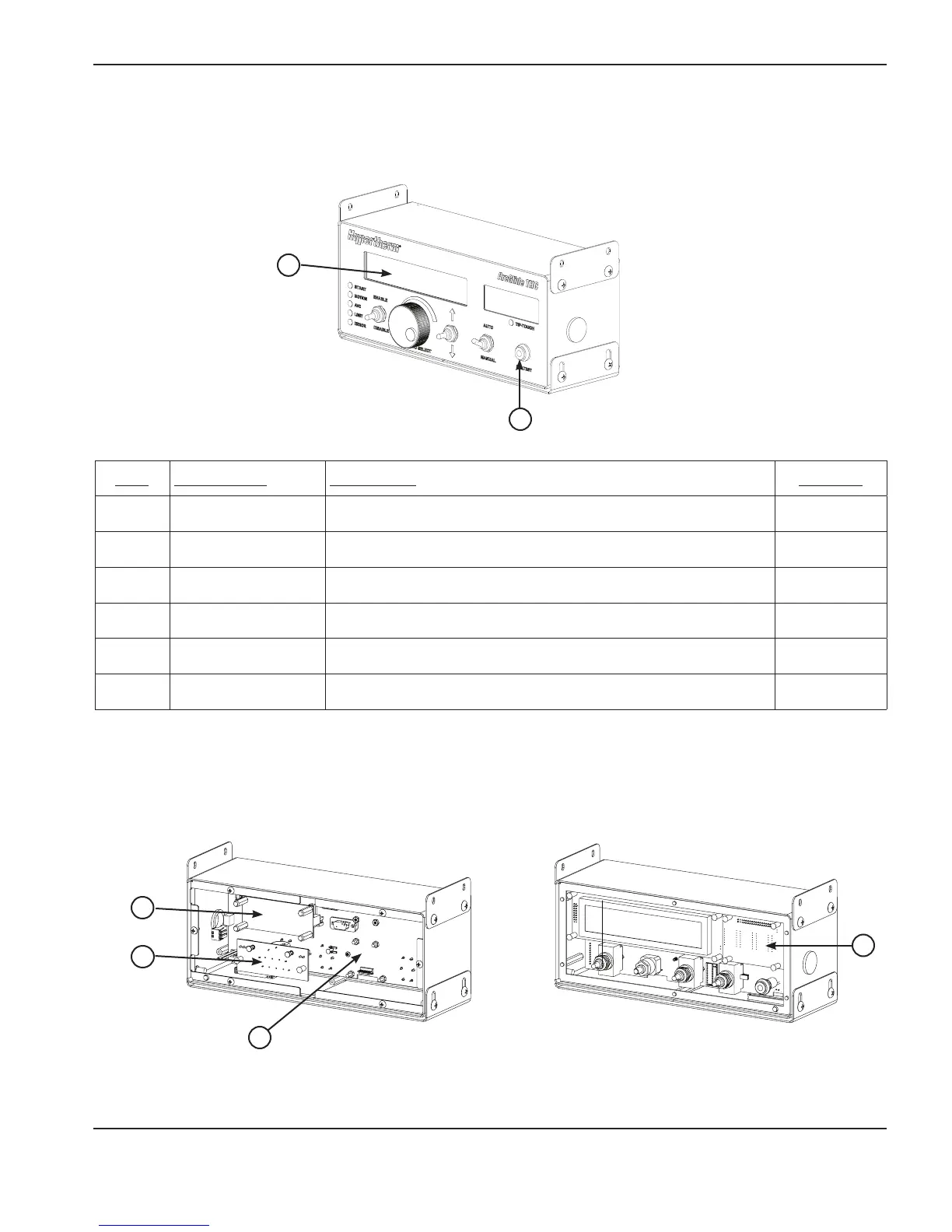

HMI parts
1
3
