ArcGlide THC Instruction Manual 2-41
INSTALLATION
2

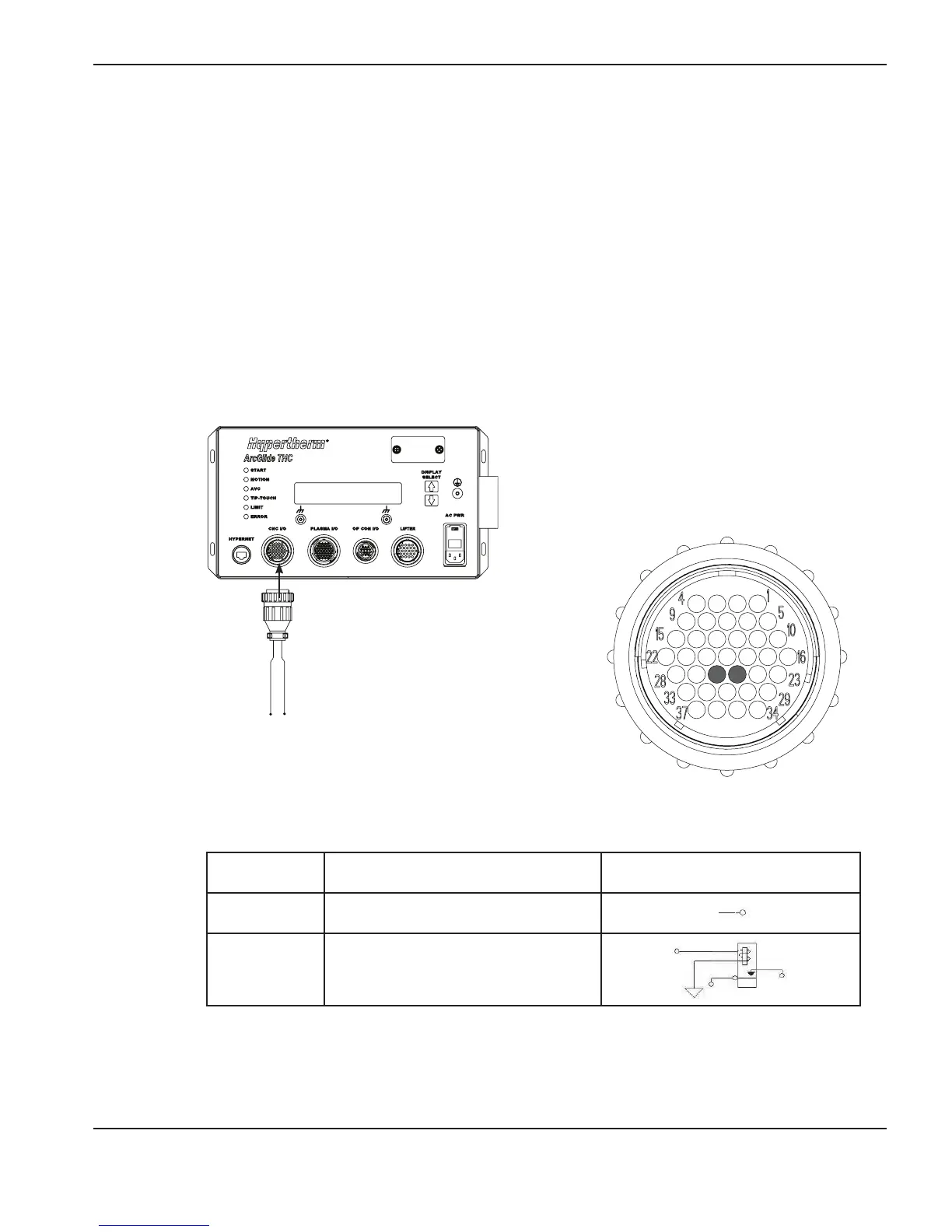

ArcGlide motor control CNC interlock kit (228594)
As part of a motion control system, the ArcGlide has an interlock to enable and disable Z-axis motion. This interlock
must be wired correctly and according to the appropriate national and local codes to allow the quick stop of motion.
The interlock must be closed (pins 25 and 26) to enable the Z-axis motion of the ArcGlide.
The interlock kit includes the connector, backshell, and pins that are necessary to build the interlock.
Pin number Signal name
Circuit
25 Interlock input +
26
Interlock input
–
_
+24 V
