Hypertherm ArcGlide Torch Height Control User Manual

2-30 ArcGlide THC Instruction Manual
INSTALLATION

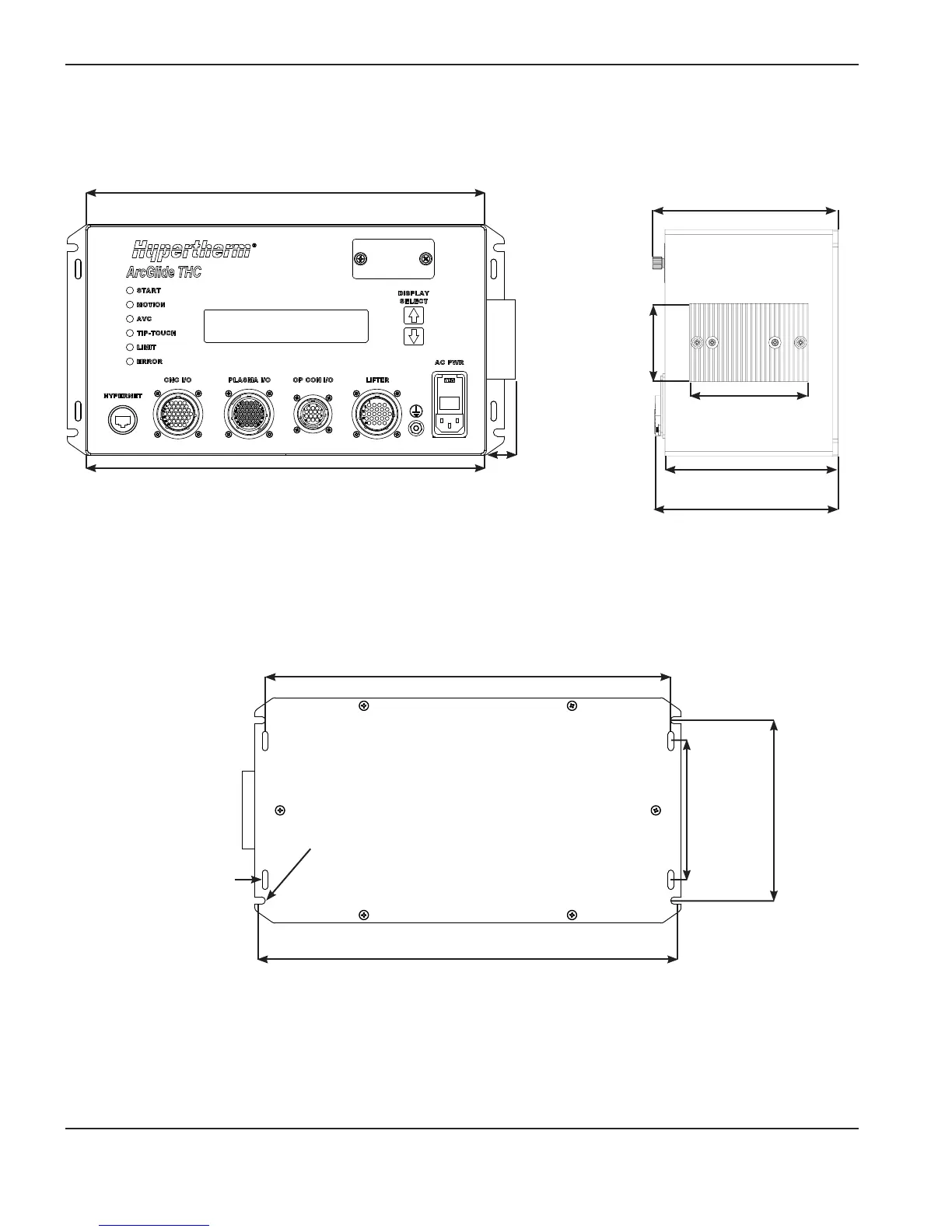

Install the control module
166.62 mm
(6.56”)
157.23 mm
(6.19”)
168.91 mm
(6.65”)
358.65 mm
(14.12”)
381.00 mm
(15.37”)
71.63 mm
(2.82”)
107.95 mm
(4.25”)
25.40 mm
(1.00”)
Control module front
Control module right side
127.00 mm
(5.00”)
371.35 mm
(14.62”)
Control module mounting dimensions
5 mm (0.201 in.)
wide
165.00 mm
(6.50”)
377.70 mm
(14.87”)
6 mm (0.25”)
bolt
