MAINTENANCE
J8 Enable/disable switch
J7 Laser pointer
J4 Breakaway
J3 Upper limit switch
J1 Lower limit switch

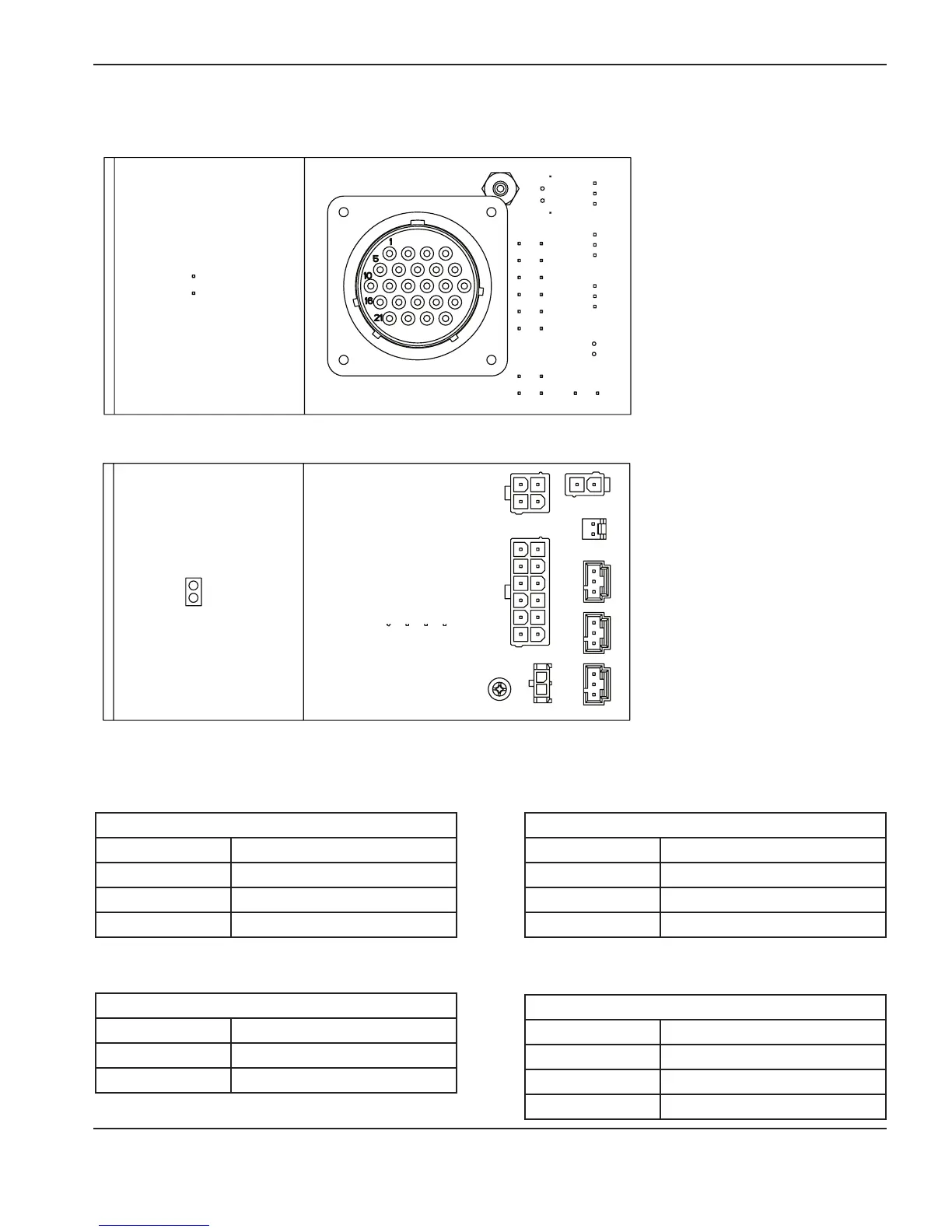

Lifter interface (228580)
Lifter interface PCB
J1 Upper limit switch
Pin number Signal
1 +12 VDC
2 Upper limit switch
3 Common
J2 Station Active LED
Pin number Signal
1 +5 VDC
2 Common
J3 Lower limit switch
Pin number Signal
1 +12 VDC
2 Lower limit switch
3 Common
J4 Breakaway switch
Pin number Signal
1 +12 VDC
2 Breakaway switch
3 Common
J10
Lifter interface
J6
Motor brake encoder
J9
Up/down switch
J2 LED
J5 Torch tip
1
1
1
1
1
1
1
1
1
Bottom surface of interface
Top surface of interface
