4-46 ArcGlide THC Instruction Manual
MAINTENANCE

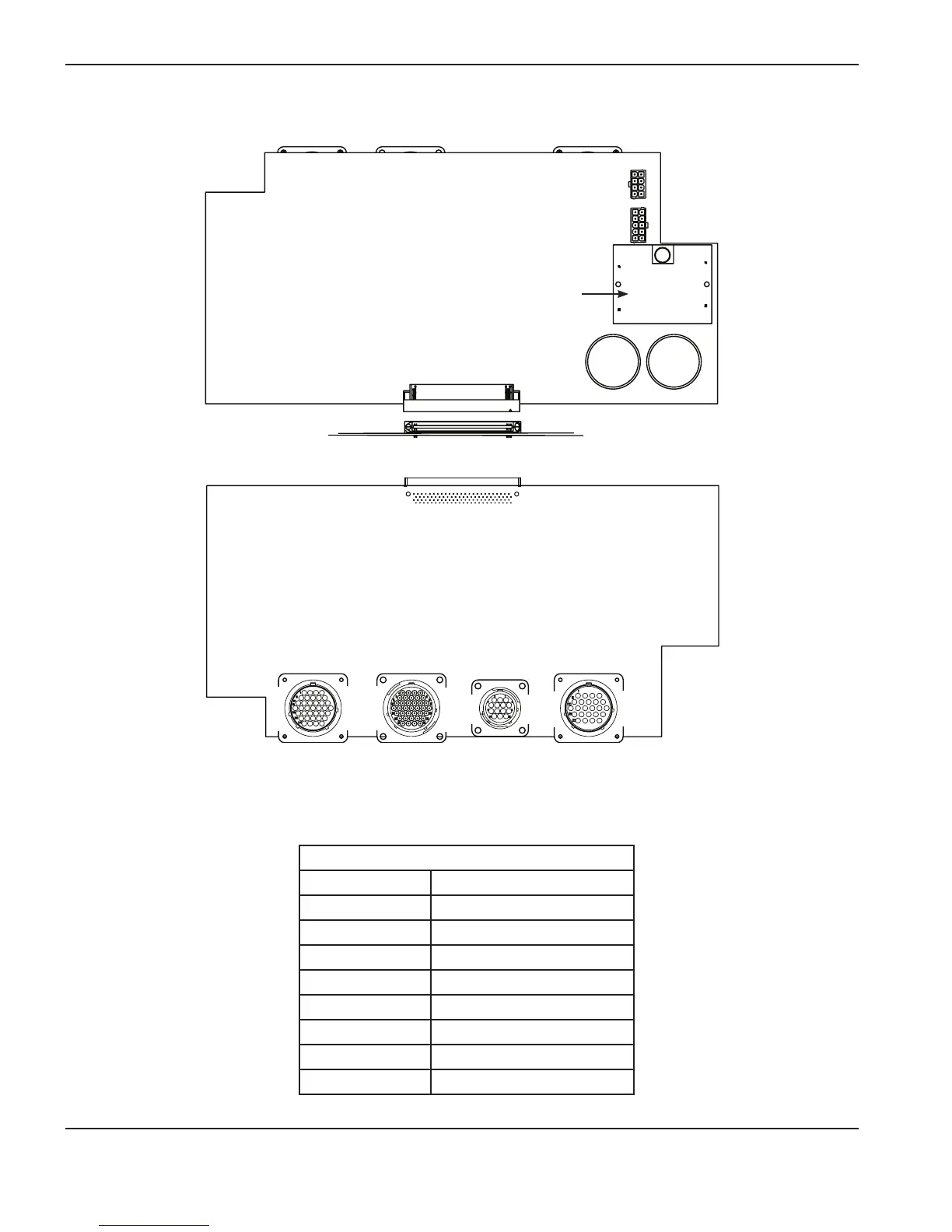

THC controller interface (228577)
1
2
52
51
49
50
100
99
THC controller interface PCB
J1 Board interconnects
J3 to Transformer
J6
CNC I/O
(male)
J4
Lifter I/O
(male)
J7
Op-Con I/O
(female)
J5
Plasma I/O
(female)
4
37
1
34
4
24
1
34
4
37
1
21
1
12
3
14
Motor drive
J3 to Transformer
Pin number Signal
1 115 V input 1
2 115 V input 2
3 115 V input 3
4 115 V input 4
5 45 V output line 1
6 45 V output line 2
7 22 V output line 1
8 22 V output line2
PCB front view
PCB back view
1
