2-48 ArcGlide THC Instruction Manual
INSTALLATION

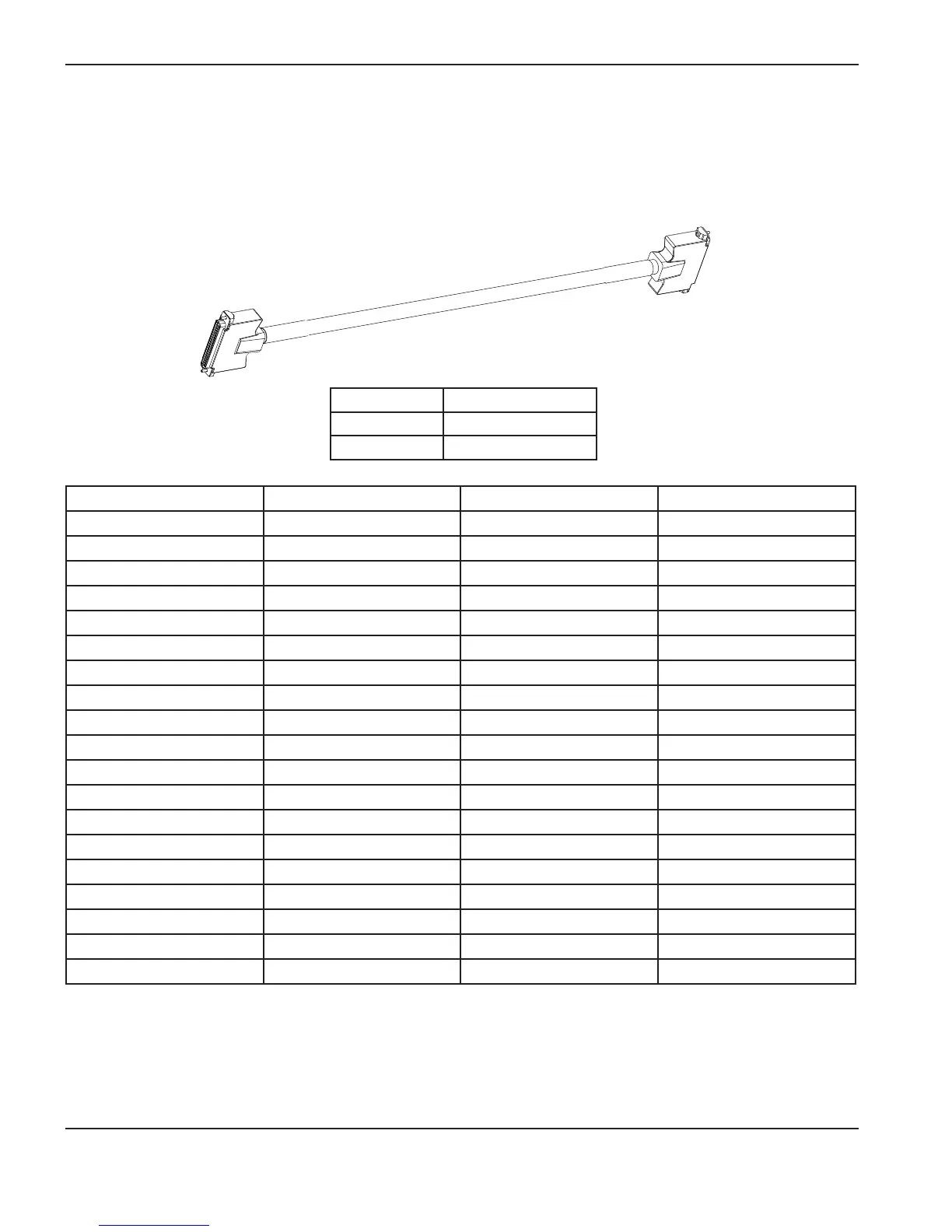

Serial plasma interface cable
This cable connects the ArcGlide plasma interface PCB and control board inside the plasma system. Use this cable
when serial communication is supplied to the plasma system by the ArcGlide THC.
Part number Length
123760 61.0 cm (2 ft)
123209 1.5 m (5 ft)
Pin number Signal Pin number Signal
1 HPR RX – 20 HPR Rx +
2 HPR TX – 21 HPR Tx +
3 RS422 Com 22 HPR powered on
4 Ground 23 Motion
5 Ground 24 Error
6 Ground 25 Rampdown error
7 Ground 26 HPR NR
8 Not connected 27 Not connected
9 Not connected 28 Not connected
10 Not connected 29 Not connected
11 Not connected 30 Not connected
12 Corner A 31 Corner B
13 Pierce A 32 Pierce B
14 Hold A 33 Hold B
15 Plasma station relay A 34 Plasma station relay B
16 Rem on A 35 Rem on B
17 Not connected 36 Ground
18 Ground 37 HPR plasma
19 Not connected 38 Ground
2
