INSTALLATION
Install the optional HMI
The mounting brackets on the top and bottom of the HMI allow you to install it singly or stacked, under or on another
piece of equipment, and level or tilted.
101.60 mm
(4.00”)
130.58
mm
(5.14”)
19.43 mm
(0.77”)
9.55 mm
(0.38”)
20.00 mm
(0.79”)
298.00 mm
(11.73”)
117.60 mm
(4.63”)
65.00 mm
(2.50”)
10-32 x 9.52 mm
(3/8”) Phillips head
screw
63.50 mm
(2.50”)
203.20 mm
(2.50”)
HMI mounted on a surface
and tilted down.
Two HMIs stacked and
mounted level under a
surface.
HMI mounted on a surface and
tilted up.

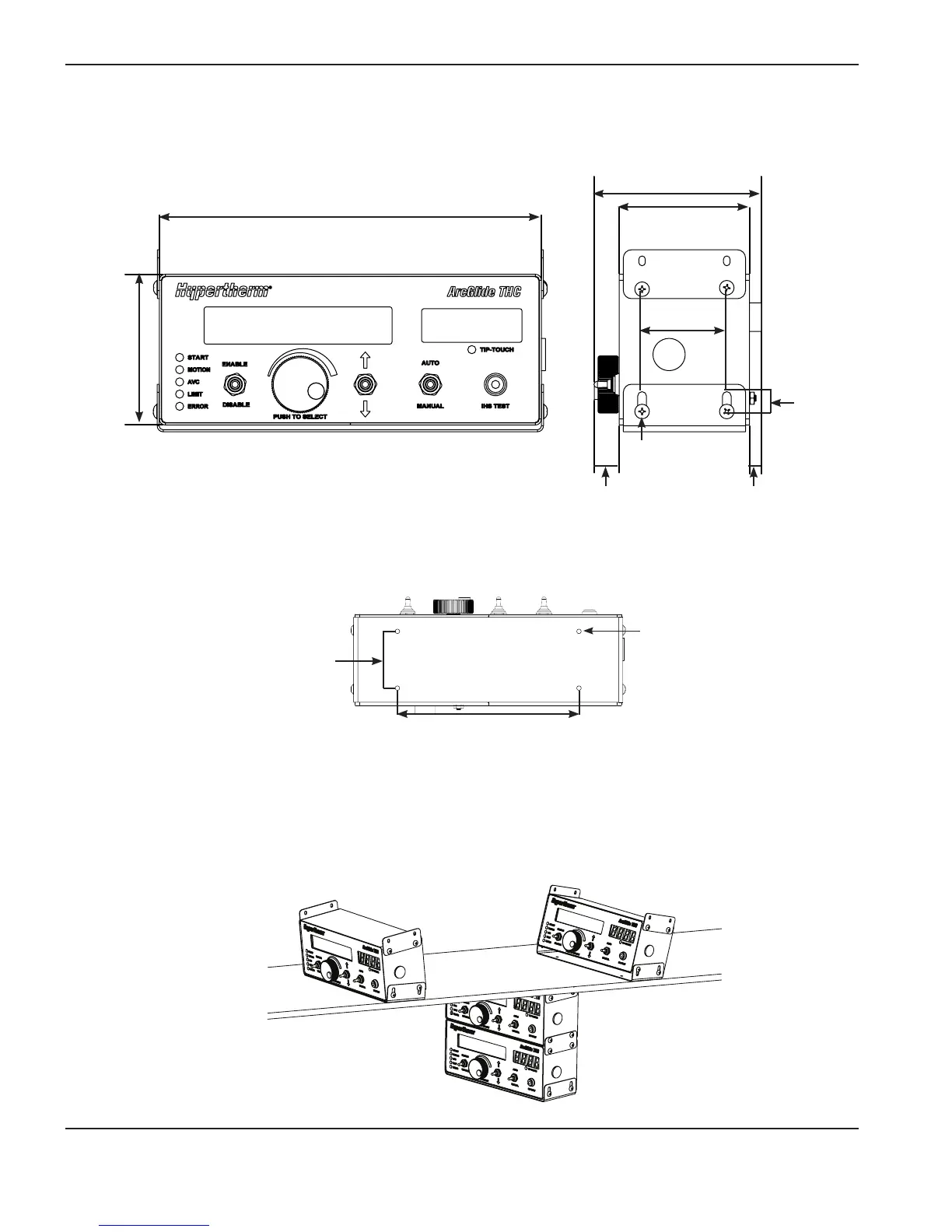

HMI mounting dimensions
HMI module front
HMI right side
5 mm (0.201
in.) diameter
