2-10 ArcGlide THC Instruction Manual
INSTALLATION
2
Hypernet control and signal cables
CNC with Hypernet
HPR plasma system
with Hypernet
HMI (optional)
Lifter
Control module
System description for a Hypernet configuration

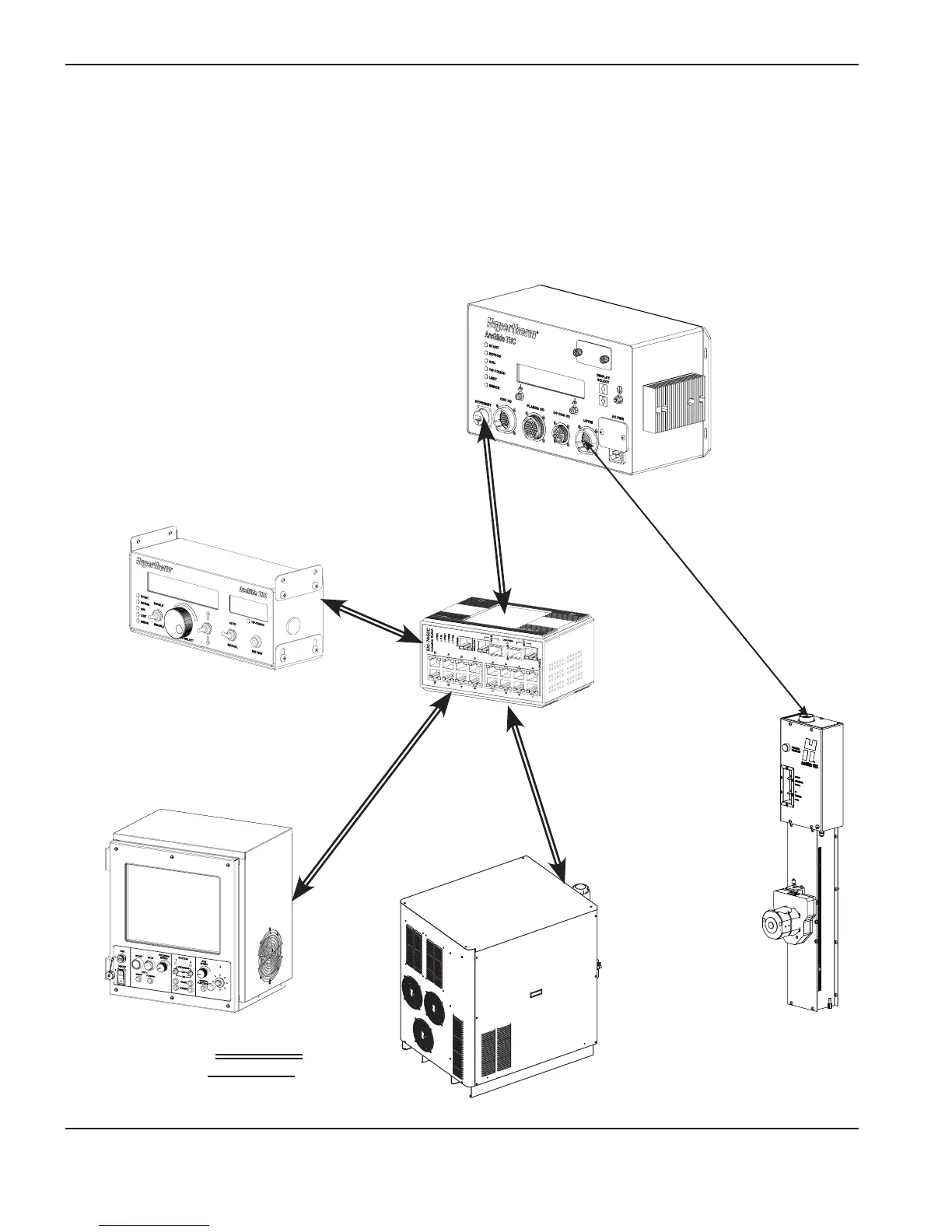

The following diagram illustrates the cable and signal connections in a Hypernet communication configuration.
Note: Serial communication is transmitted over Hypernet cables.
Key:
Hypernet connection
Discrete connection
Industrial
Ethernet switch
