ArcGlide THC Instruction Manual 4-59
MAINTENANCE

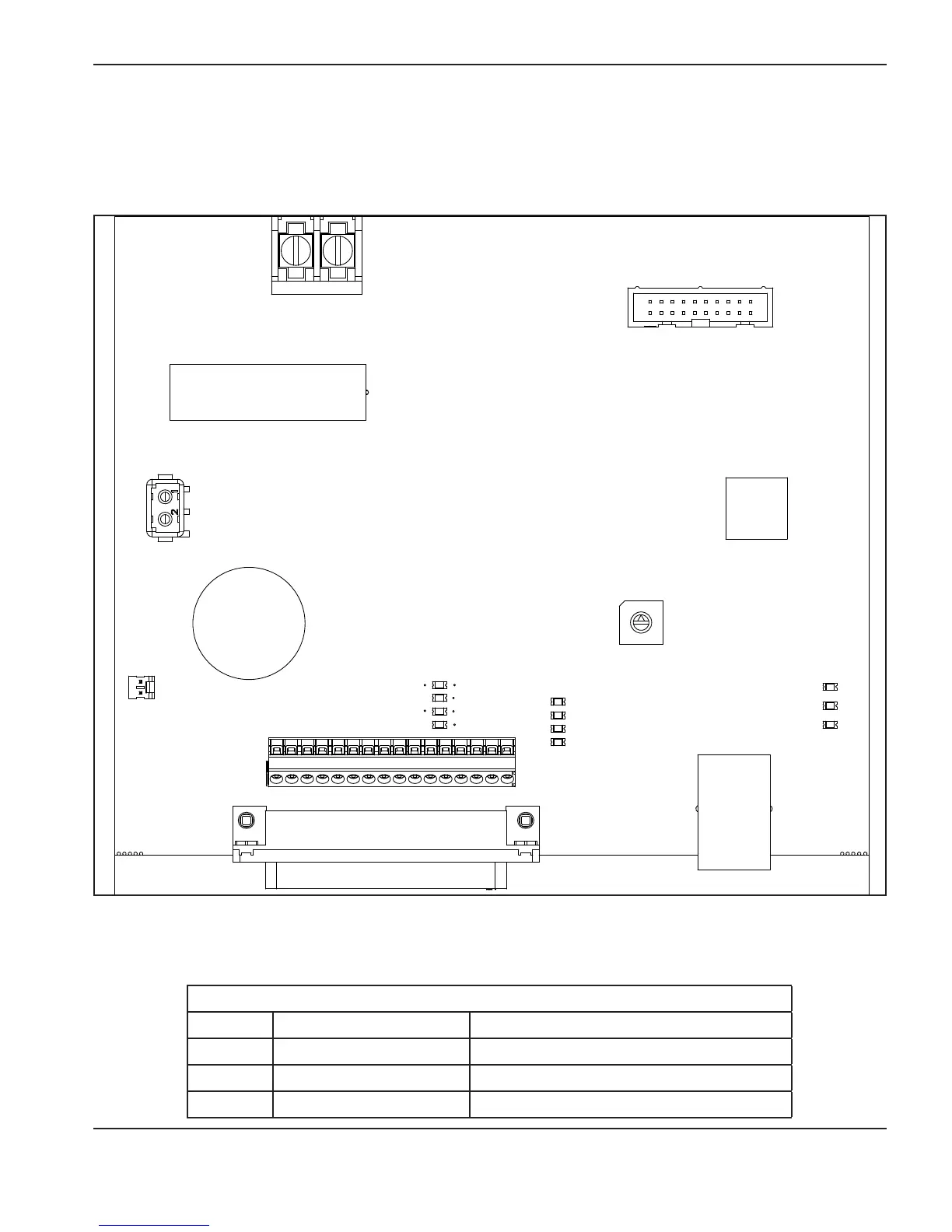

Hypernet plasma interface (141161)
J5 CNC interface
J3
J1
Hypernet
24VAC
input
J7
J6
Remote
ON/OFF out
J4
J2
SW1
Unit address
(+)
Work
Electrode
(-)
Connect pins 1 and 2 to locations 1
and 3 on terminal block 2 in the plasma
supply.
Note: In a Hypernet configuration, the Unit address switch (SW1) on the Hypernet interface PCB must have
the same address as the Unit address switch on the HMI processor and the THC processor PCBs. The
default setting is 1.
1
2
Connect the arc voltage terminals to the I/O board in the HPR
plasma system.
LED1
LED2
LED3
LEDs
LED Color Signal
1 Red Plasma system error
2 Slow blinking red HPR Hypernet is ready
3 Rapid blinking red Serial transmission
2
