2-18 ArcGlide THC Instruction Manual

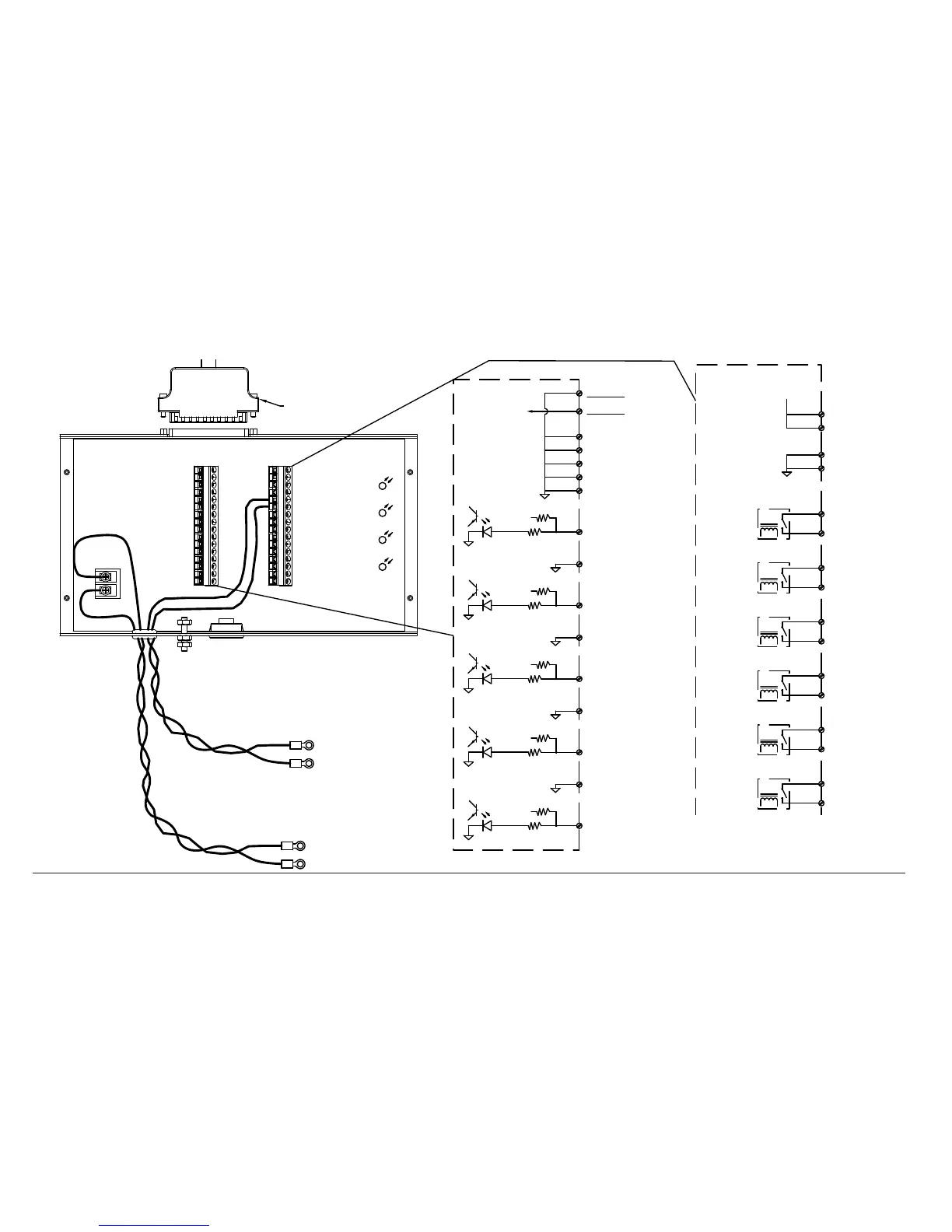

ArcGlide plasma interface with discrete connection to an HPR or HPRXD plasma system
Interface cable 123760
DB37 to DB37
To plasma system WORK +
To plasma system
Use ~0.9 mm squared (18 AWG) twisted
pair wire, rated 600 V or greater
To terminal block 2, pins 1 and 3
J3 OutputsJ2 Inputs
*Note: 24 V pullups on inputs are active only if they are set to dry on
the ArcGlide control module.
**Note: The minimum connections required are Plasma Start and
Motion. Use other signals if they are supported by the plasma
system.
To plasma system ELECTRODE -
Field 24 V out
Field 24 V out
Common
Common
Remote On B
Remote On A
Spare out B
Spare out A
Plasma Start B
Plasma Start A
Hold B
Hold A
Pierce B
Pierce A
Corner B
Corner A
Not connected
Not connected
Common
Common
Common
Common
Common
Spare in
Common
Not ready
Common
Ramp error
Common
Error
Common
Motion
Electrode (-)
Work (+)
J3
J2
Plasma interface (090052)
2
