Hypertherm ArcGlide Torch Height Control User Manual

ArcGlide THC Instruction Manual 4-51
MAINTENANCE

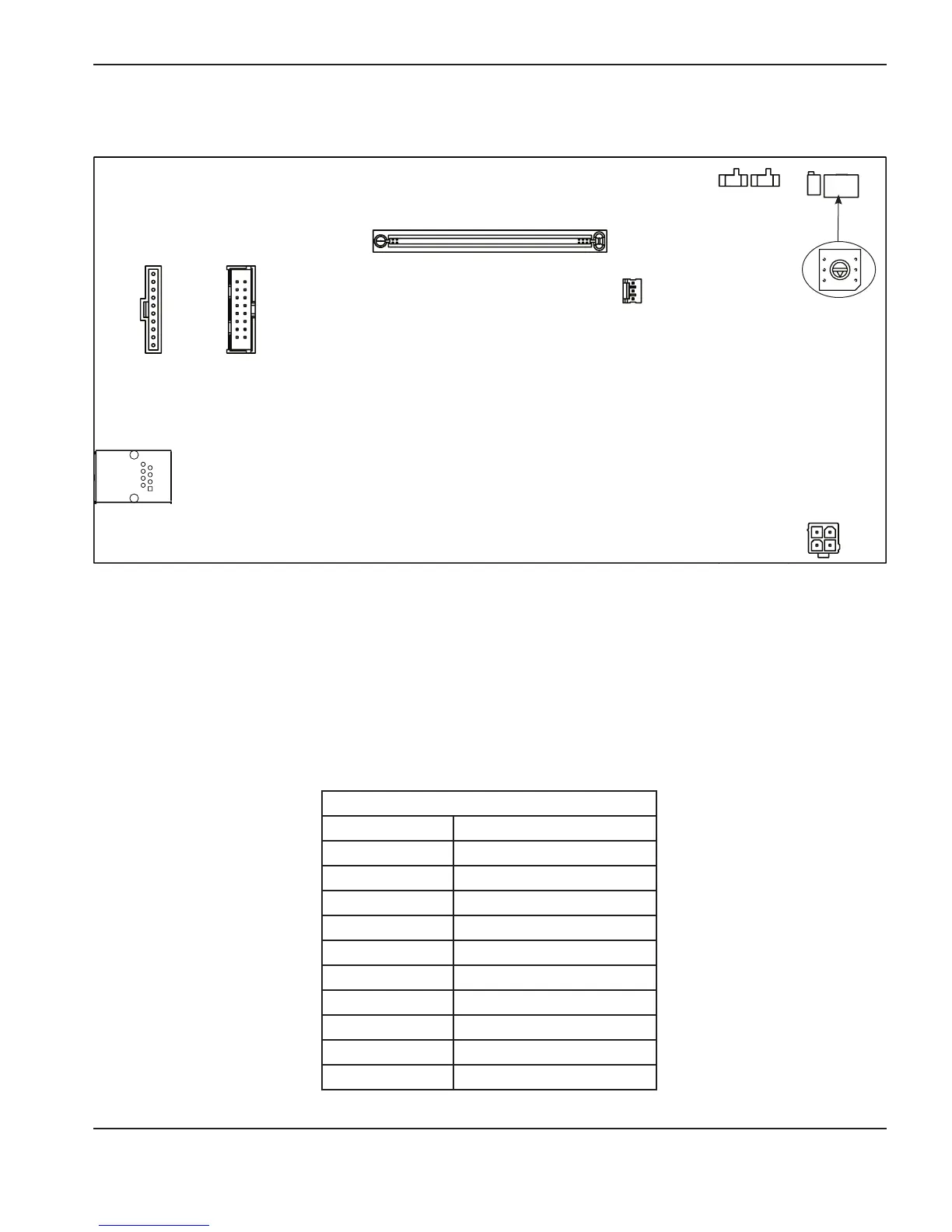

THC processor (228578)
THC processor PCB
J2 Front panel LEDs
Pin number Signal
1 +5 VDC
2 +5 VDC
3 Start LED
4 Motion LED
5 Limit LED
6 AVC LED
7 Error LED
8 Contact LED
9 Display backup
10 Display advance
J3 Board interconnects
J2
Front panel
LEDs
J5
LCD character
module
J11
LCD B/L
J8
Hypernet
52
51
2
1
100
99
50
49
J4
LCD B/L
SW3 Unit address switch,
default setting = 1
SW2
UNIT ADDRESS
Note: In a Hypernet configuration, the Unit address switch (SW3) on the THC processor PCB must have the
same address as the Unit address switch on the HMI processor and the Hypernet interface PCBs. The
default setting is 1.
Dry or sourced input switches,
default setting = D (dry)
1
1
1
1
1
1 1
1
