Hypertherm ArcGlide Torch Height Control - Connect the Ohmic wire to other plasma systems

2-28 ArcGlide THC Instruction Manual
INSTALLATION
Connect the Ohmic wire to other plasma systems
Note Do not splice Ohmic wires.
If your plasma system is not an HPR XD system, connect the ArcGlide Ohmic wire to the torch:
1. Unfasten the tywrap around the coiled Ohmic wire and straighten the Ohmic wire.
2. Install the free end of the Ohmic wire on the IHS tab on the torch retaining cap.
2
2

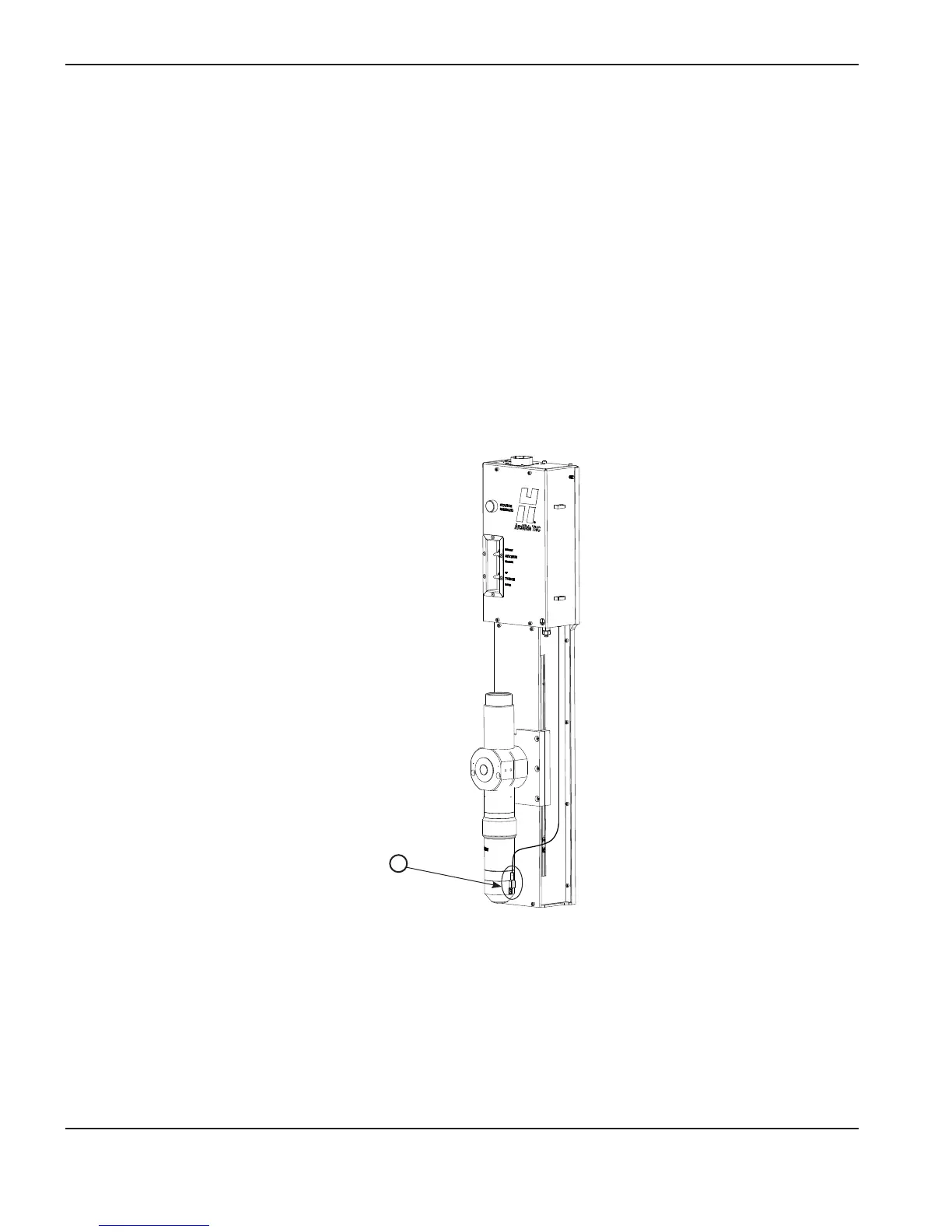

Connect the Ohmic wire
