2-42 ArcGlide THC Instruction Manual
INSTALLATION
2
Part number Length
223213 3.0 m (10 ft)
223214 6.0 m (20 ft)
223122 7.5 m (25 ft)
223215 10.5 m (35 ft)
223005 15.0 m (50 ft)
223107 23.0 m (75 ft)
223108 30.5 m (100 ft)
223109 45.5 m (150 ft)
223110 61.0 m (200 ft)

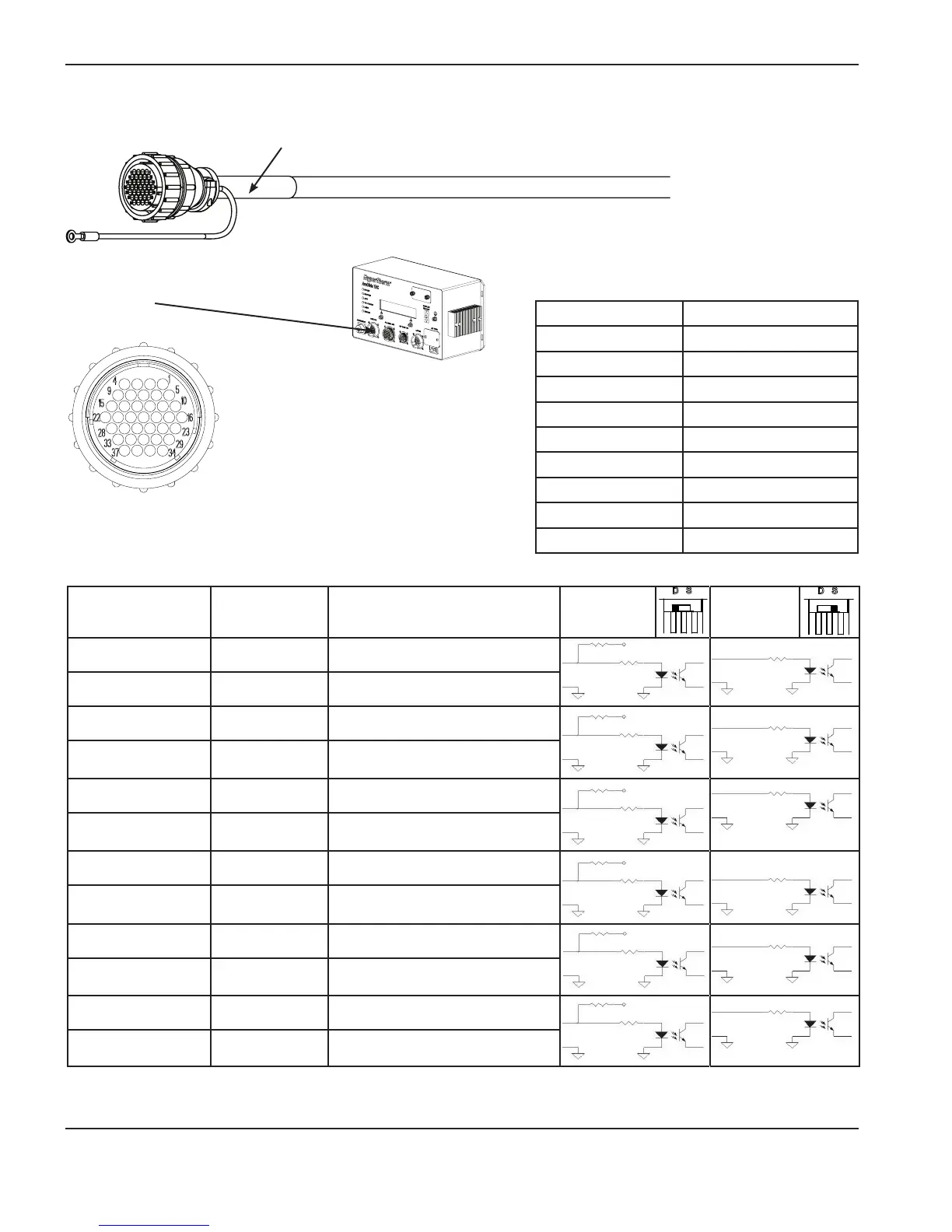

CNC I/O cable
Yellow band
Connect this end to the connector
on the control module with the
yellow circle.
Connect this end to
the CNC by adding the
appropriate connector for
your CNC.
* Pin numbers are the same on both ends of the cable.
** AVC = Arc voltage control
Notes:
• All ArcGlide CNC inputs can be
configured for dry contact closures
or 12 – 24 V sourced inputs.
• For more information about discrete
CNC I/O signals, see ArcGlide
discrete interface signals.
Pin number* Color Signal name
Dry contact
circuit
Sourced
circuit
1 Red Cycle Start input +
2 Black Cycle Start input –
3 White Low gain input +
4 Black Low gain input –
5 Green AVC* Disable input +
6 Black AVC* Disable input –
7 Blue IHS Sync input +
8 Black IHS Sync input –
9 Yellow Spare Input 1 +
10 Black Spare Input 1 –
11 Brown Spare Input 2 +
12 Black Spare Input 2 –
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+24 V
3.9 K
+
_
3.9 K
+
_
3.9 K
+
_
3.9 K
+
_
3.9 K
+
_
3.9 K
