Hypertherm ArcGlide Torch Height Control User Manual

ArcGlide THC Instruction Manual 2-43
INSTALLATION
2

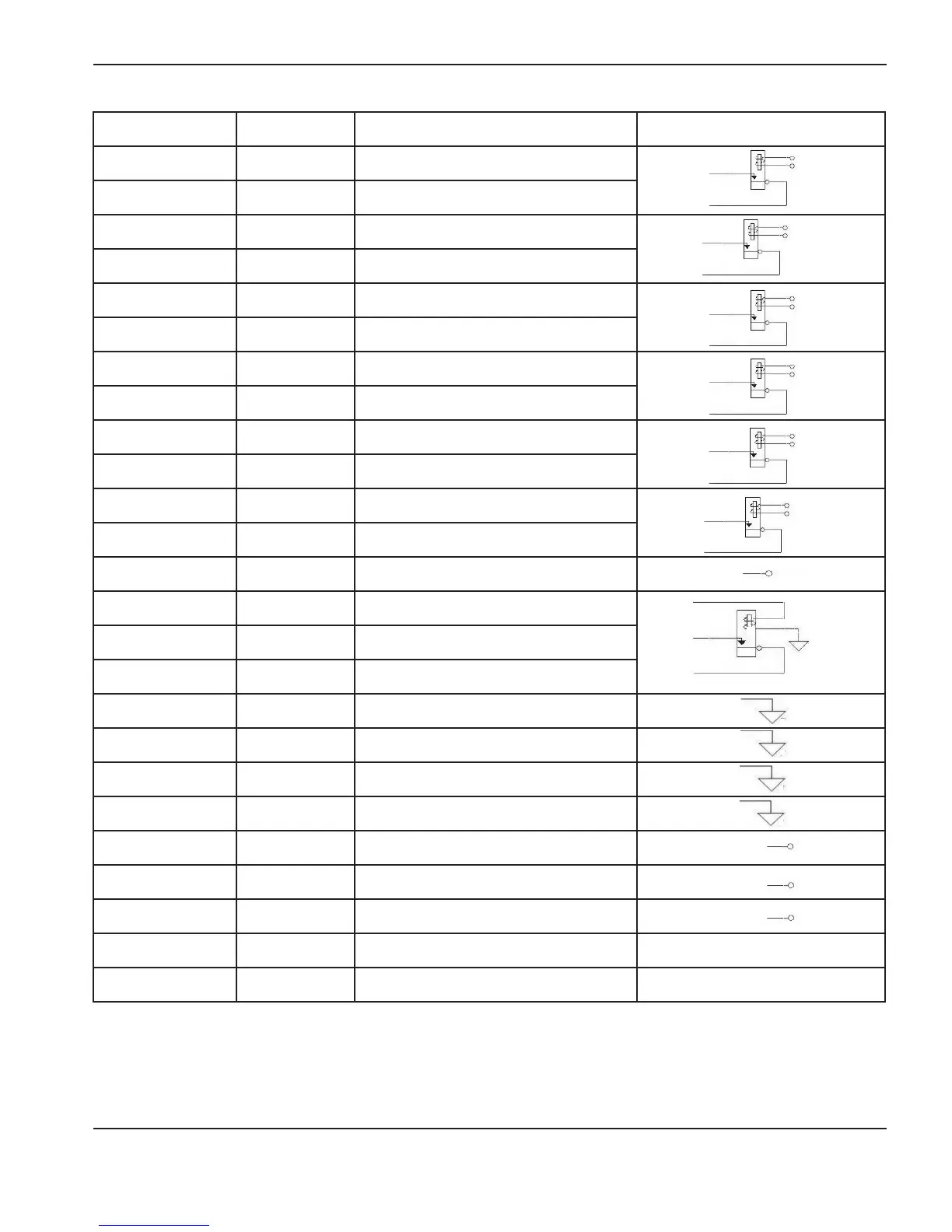

Pin number* Color Signal name
Dry contact or sourced circuit
13 Orange IHS Complete output A
14 Black IHS Complete output B
15 White Retract complete output A
16 Red Retract complete output B
17 Green Machine Motion output A
18 Red Machine Motion output B
19 Blue THC Error output A
20 Red THC Error output B
21 Yellow Torch Breakaway output A
22 Red Torch Breakaway output B
23 Brown CNC Spare output A
24 Red CNC Spare output B
25 Orange Motion interlock input +**
26 Red
Motion interlock input
–**
27 White Interlock output A
28 Green Interlock output B
29 Blue Common
30 Green Common
31 Yellow Common
32 Green Common
33 Brown +24 VDC output
34 Green +24 VDC output
35 Orange +24 VDC output
36 Not connected
37 Not connected
* Pin numbers are the same on both ends of the cable.
** The input is closed if a jumper is used.
A
B
-
+24 V
+24 V
+24 V
+24 V
B
A
A
B
normally
open
B
A
A
B
normally
open
B
A
A
B
normally
open
B
A
A
B
normally
open
B
A
A
B
normally
open
B
A
A
B
normally
open
normally
open
