2-50 ArcGlide THC Instruction Manual
INSTALLATION
Outputs
Most of the ArcGlide THC outputs are relay contacts and can be used for either AC or DC loads. All relay outputs are
protected with automatically resetable thermal fuses that protect against currents above 100 mA. The 24 V supply

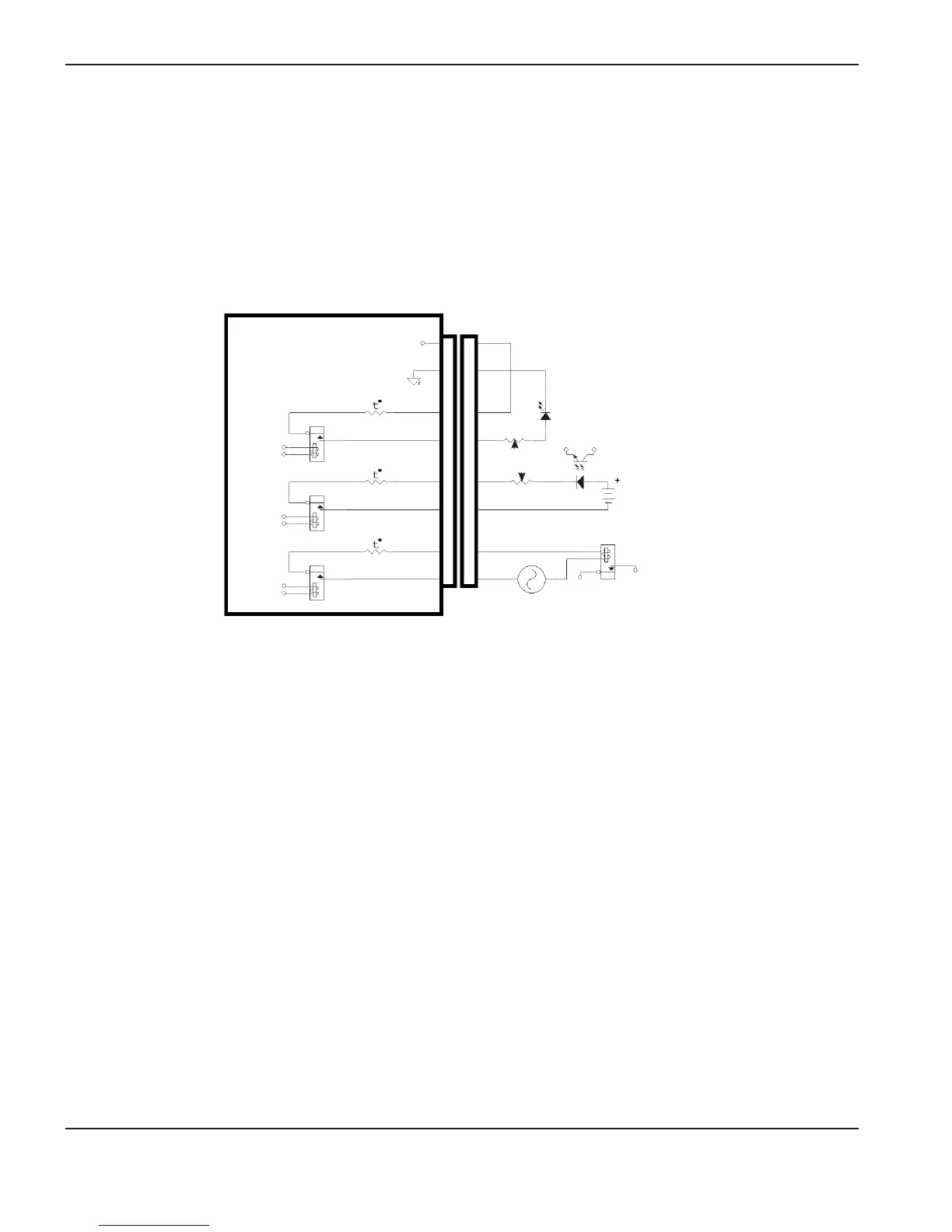

is limited to a total of 2 Amps for all outputs. The figure below shows the simplified schematic of the ArcGlide THC
outputs.
Relay outputs
Relay
Relay
Relay
PTC* 100 mA
PTC* 100 mA
PTC* 100 mA
+24 V Field
Use internal field +24 VDC
LED
Optoisolator
+12 VDC to 24 VDC
(external supply)
Relay
Voltage 12 V to
24 VAC or VDC
Resistors
ArcGlide internal circuitry
*Positive Temperature Coefficient
A
B
A
B
A
B
