ArcGlide THC Instruction Manual 2-19

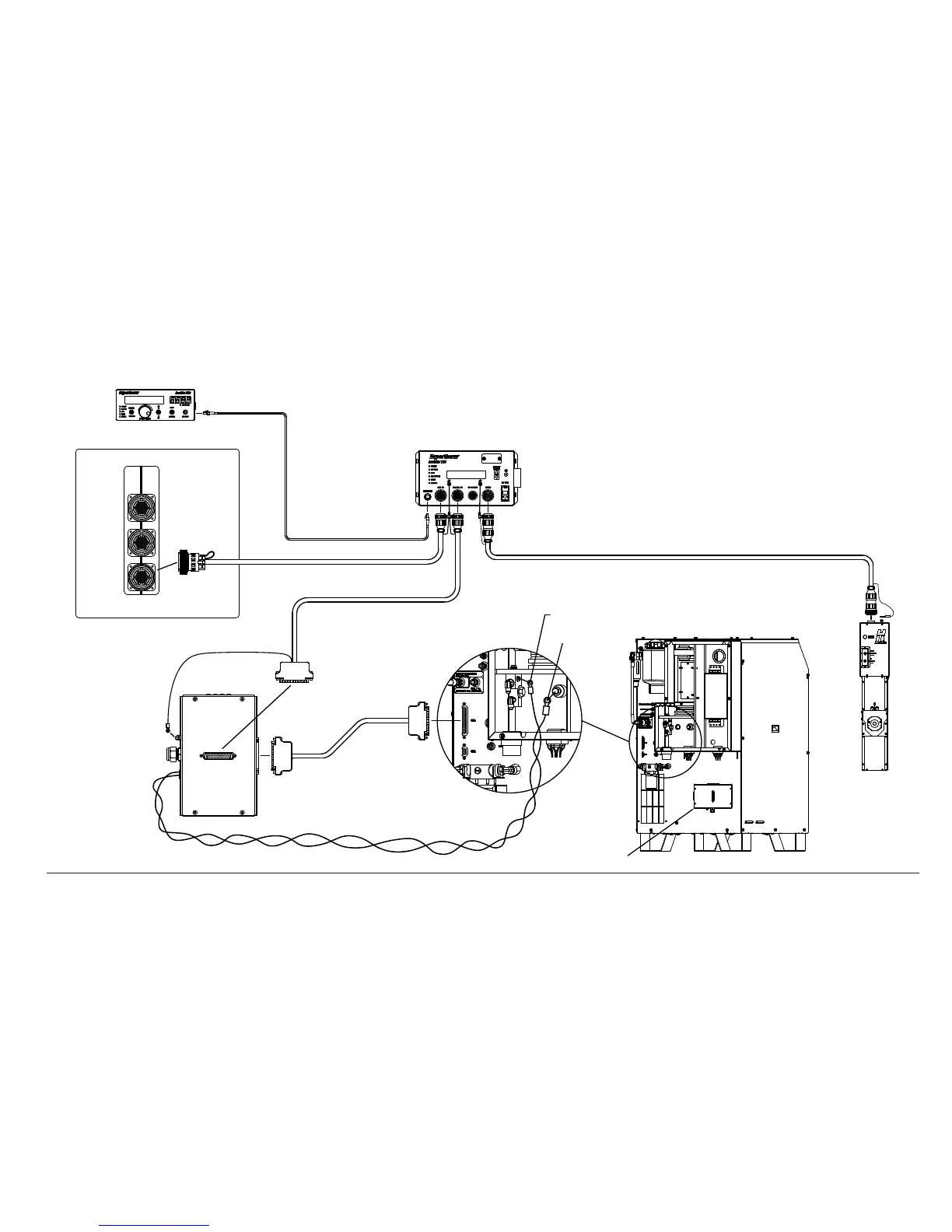

ArcGlide THC with discrete communication to Picopath CNC and HSD130 plasma system
ArcGlide HMI address 1
ArcGlide control
module address 1
CNC with Picopath interface
HSD130
Plasma interface,
mounted externally by
customer.
Plasma interface I/O cable
Interface cable 123209
Arc voltage sense wires. Use ~0.9 mm squared (18 AWG) twisted pair
wire, rated 600 V or greater
Electrode (-)
Work (+)
CNC I/O cable
Lifter interface cable
Shielded Ethernet cable
DB50
DB37
ArcGlide lifter
Axes 3,4
Axes 1,2
I/O
DB37
Plasma
interface
(090052)
2
