Hypertherm ArcGlide Torch Height Control User Manual

1-6 ArcGlide THC Instruction Manual
SPECIFICATIONS
2
Lifter assembly (090053)
Regulatory approvals CE
Motor 70 VDC, 3 A
Limit switches +24 VDC
Motor Permanent magnet
Motor drive PWM Servo amplifier
Lifter feedback Incremental encoder
Lifter limit switches Home switch and lower limit switch
Lifter control switches Manual up/down and station disable switches
Maximum Z axis speed 1520 cm/minute (600 in/minute)
Maximum Z axis stroke 239 mm (9.4 in)
Breakaway switch +24 VDC
Motor brake +24 VDC
Laser pointer (Class 3B) +5 VDC, Maximum power: 500 mW, Wavelength: 400 - 695 nm
Lifter capacity 11.3 kg (25.0 lb)

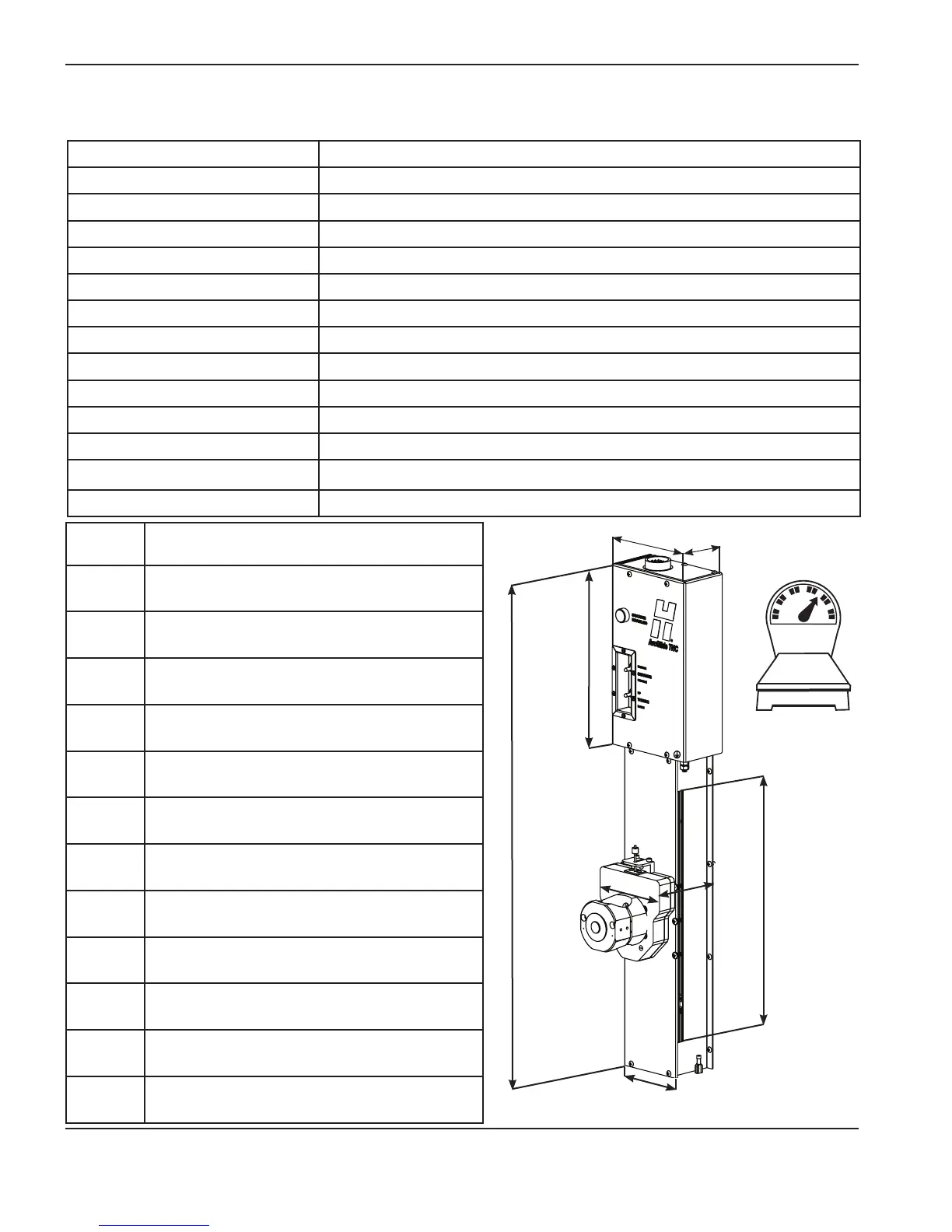

Lifter assembly
78.7 mm
(3.1”)
151.0 mm
(5.9”)
268.1 mm
(10.6”)
743.2 mm
(29.3”)
127.0 mm (5.0”)
85.5 mm
(3.4”)
11.11 kg
(24.50 lb)
238.8 mm
(9.4”)
50.8 mm
(2.0”)
Part
number
Torch mounting and breakaway options
090082 51 mm (2 in) mounting, 11 kg (25 lb) magnetic
breakaway
090083 51 mm (2 in) mounting, pneumatic breakaway
090084 44 mm (1 3/4 in) mounting, pneumatic
breakaway
090085 35 mm (1 3/8 in) mounting, pneumatic
breakaway
090086 44 mm (1 3/4 in) mounting, 11 kg (25 lb)
magnetic breakaway
090087 35 mm (1 3/8 in) mounting, 11 kg (25 lb)
magnetic breakaway
090088 51 mm (2 in) mounting, 4.5 kg (10 lb) magnetic
breakaway
090089 44 mm (1 3/4 in) mounting, 4.5 kg (10 lb)
magnetic breakaway
090090 35 mm (1 3/8 in) mounting, 4.5 kg (10 lb)
magnetic breakaway
090091 Pneumatic breakaway
090092 4.5 kg (10 lb) magnetic breakaway
090093 11 kg (25 lb) magnetic breakaway
