Hypertherm ArcGlide Torch Height Control User Manual

ArcGlide THC Instruction Manual 4-45
MAINTENANCE

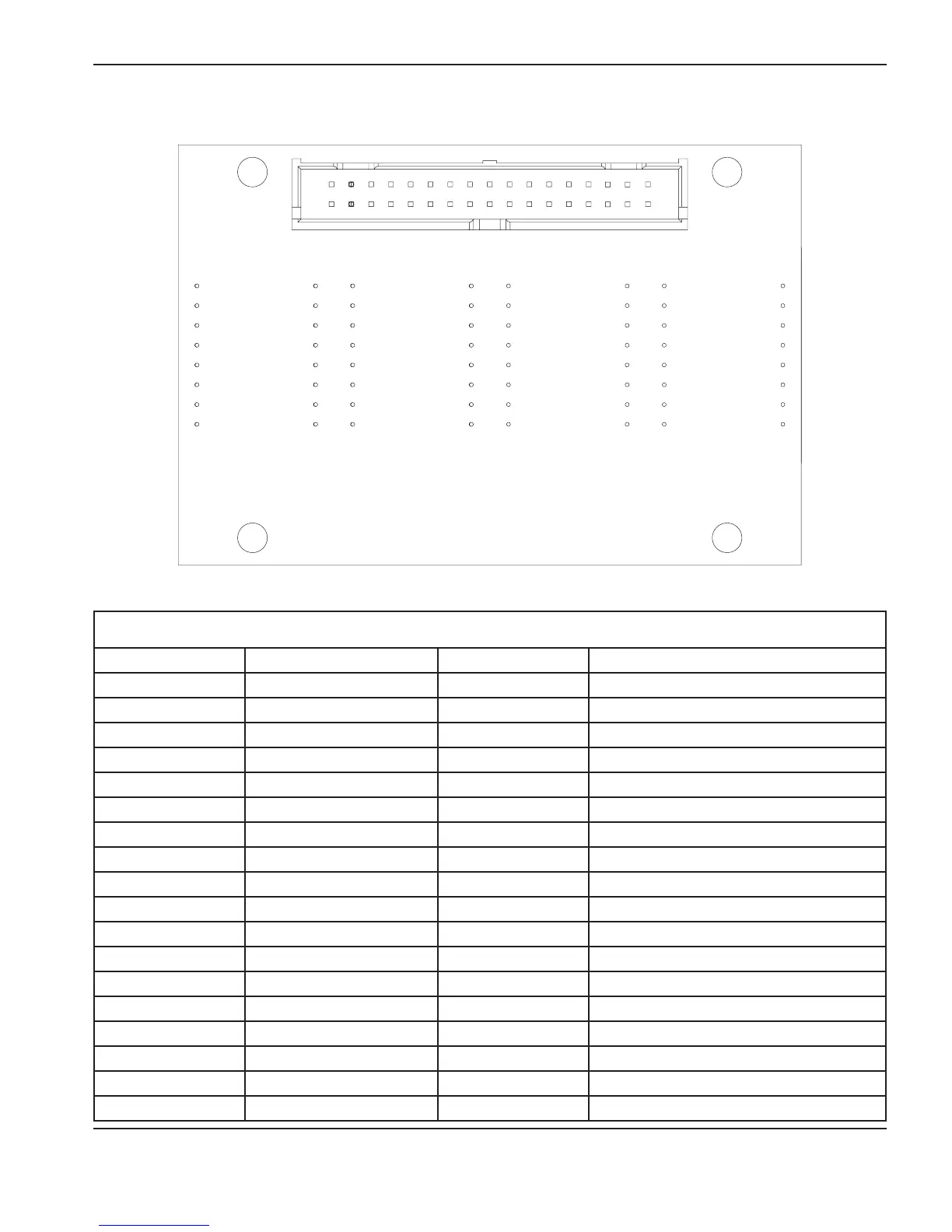

HMI 7-segment display interface (228582)
HMI 7-segment display interface PCB
J1 Display ribbon cable connector
J3 Display ribbon cable
Pin number Signal Pin number Signal
1 +LED V 19 Hundreds decimal point
2 +LED V 20 Hundreds G
3 Ones decimal point 21 Hundreds F
4 Ones G 22 Hundreds E
5 Ones F 23 Hundreds D
6 Ones E 24 Hundreds C
7 Ones D 25 Hundreds B
8 Ones C 26 Hundreds A
9 Ones B 27 Thousands decimal point
10 Ones A 28 Thousands G
11 Tens decimal point 29 Thousands F
12 Tens G 30 Thousands E
13 Tens F 31 Thousands D
14 Tens E 32 Thousands C
15 Tens D 33 Thousands B
16 Tens C 34 Thousands A
17 Tens B
18 Tens A
1
2
33
34
