ArcGlide THC Instruction Manual 2-39
INSTALLATION
Part number Length
223212 3.0 m (10 ft)
2232222 6.0 m (20 ft)
223119 7.5 m (25 ft)
223223 10.5 m (35 ft)
223008 15.0 m (50 ft)
223099 23.0 m (75 ft)
223100 30.5 m (100 ft)
223101 45.5 m (150 ft)
223102 61.0 m (200 ft)
Pin number* Signal name
1 TX + (transmit data +)
2 TX – (transmit data –)
3 RX + (receive data +)
4 Not connected
5 Not connected
6 RX – (receive data –)
7 Not connected
8 Not connected

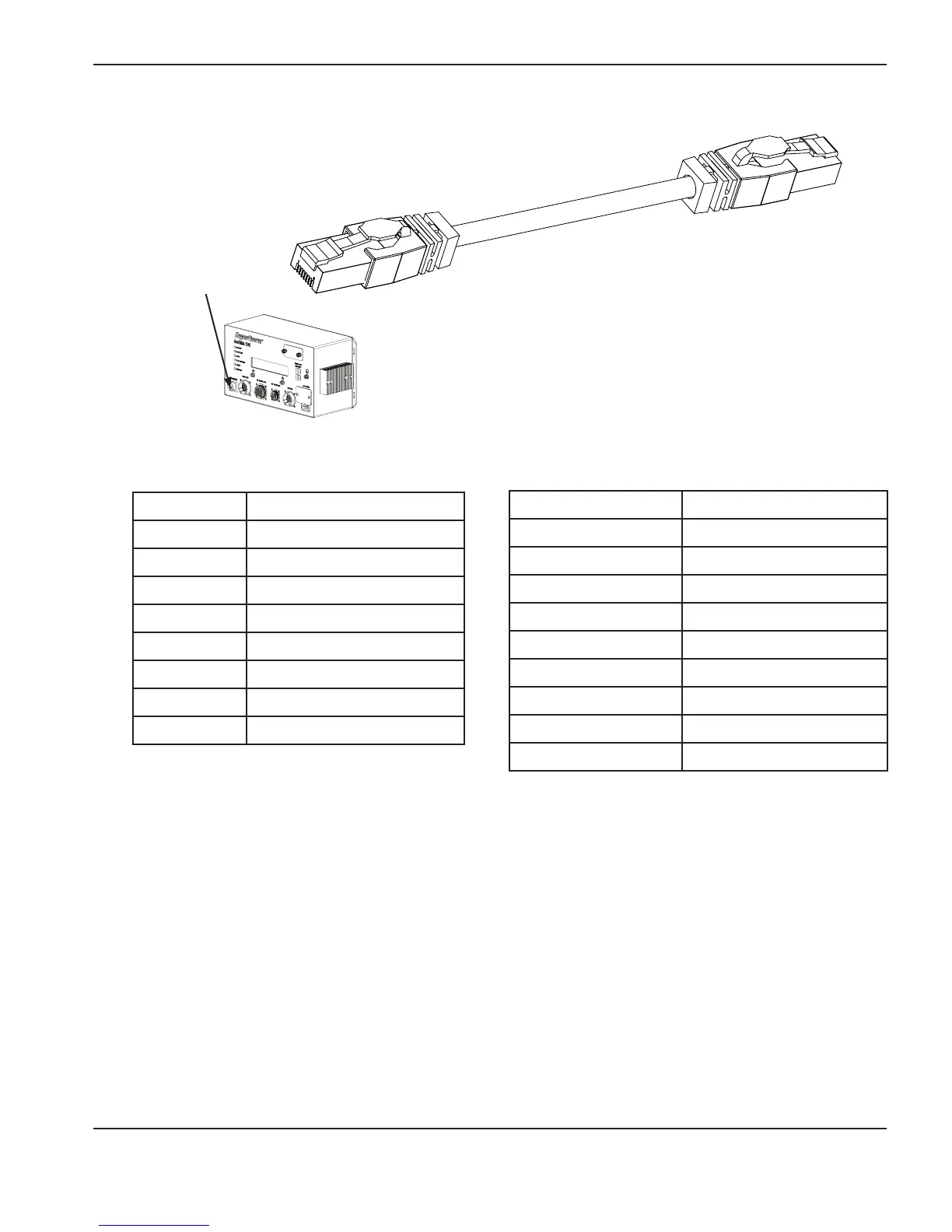

Hypernet and HMI interface cable
Connect this end to the
ArcGlide HMI.
Connect this end to
the control module
or Ethernet switch.
In a Hypernet or mixed configuration where there is more
than one Hypernet span, use these cables to connect the
components of the system to the Ethernet switch.
If you use Ethernet cable from another supplier, verify that
the cable is a standard, shielded RJ-45 Cat-5e cable.
* Pin numbers are the same on both ends of the cable.
