Hypertherm ArcGlide Torch Height Control User Manual

5-2 ArcGlide THC Instruction Manual

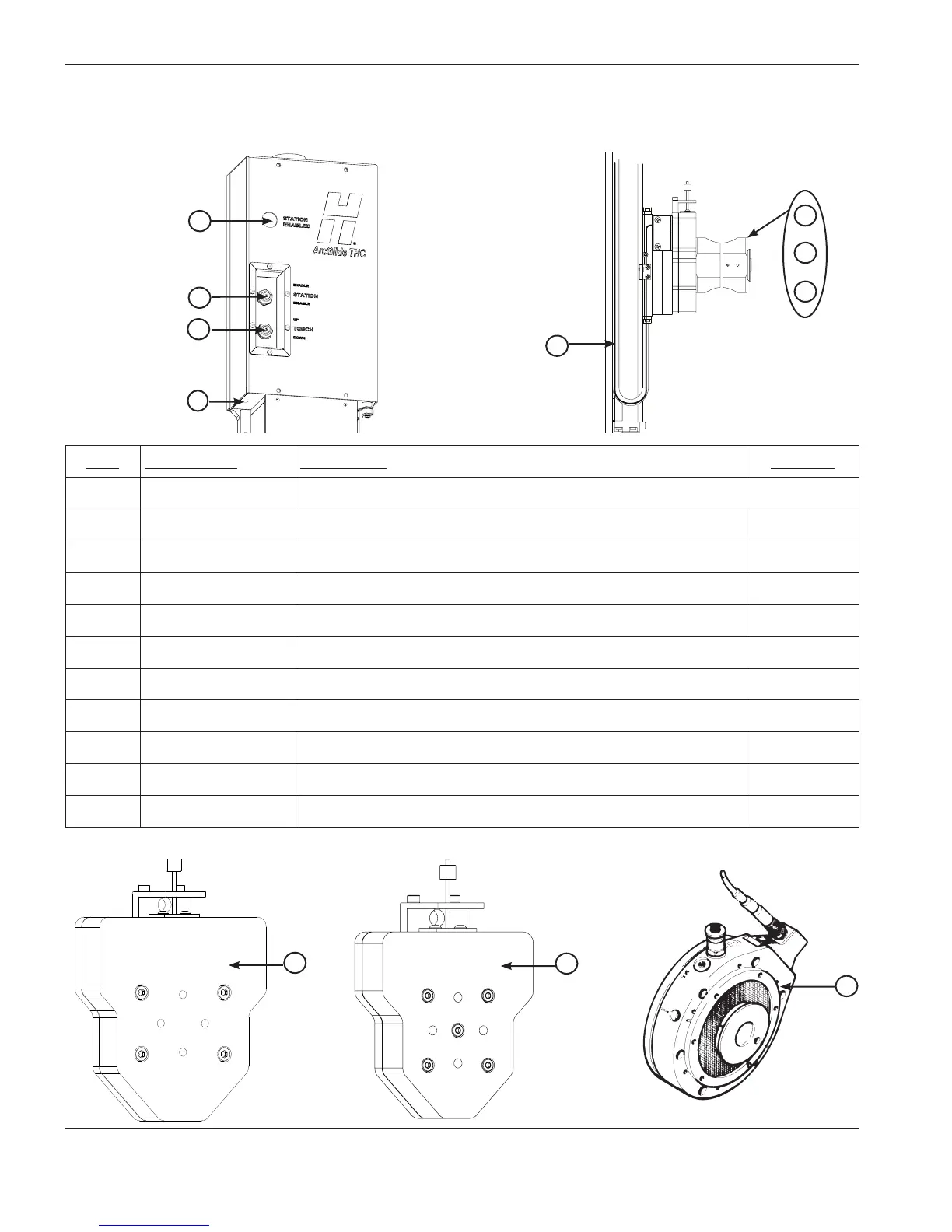

PARTS
2
Item Part number Description Quantity
1 228588 Kit: Station Enable 5 V LED 1
2 228585 Kit: Enable/disable switch 1
3 228584 Kit: Torch up/down switch 1
4 228592 Kit: Laser pointer diode 1
5 228608 Kit: Breakaway cable 1
6 228593 Kit: 11.34 kg (25 lb) Magnetic breakaway 1
7 228607 Kit: 4.54 kg (10 lb) Magnetic breakaway 1
8 228597 Kit: Pneumatic breakaway 1
9 128277 Kit: Lifter torch mounting bracket, 35 mm (1-3/8 in) 1
10 128278 Kit: Lifter torch mounting bracket, 44 mm (1-3/4 in) 1
11 128279 Kit: Lifter torch mounting bracket, 50 mm (2 in) 1
Lifter parts
4
1
2
3
6 7
8
5
9
10
11
