Hypertherm ArcGlide Torch Height Control - Page 108

3-8 ArcGlide THC Instruction Manual
OPERATION
IHS start height
Puddlejump height
Pierce height
Transfer height
Workpiece
Creep time
Pierce delay
Cut height delay
AVC delay
Auto kerf detect
Torch height disable
Cut off time
Stop time
Retract height
CNC cut control active
Plasma torch active
Cutting X/Y motion
AVC active
Cut height
Time
CNC cycle start
(Cut Control)
Tip
touch
Plasma start
Torch
height
Arc transfer
AVC begins
Retract complete

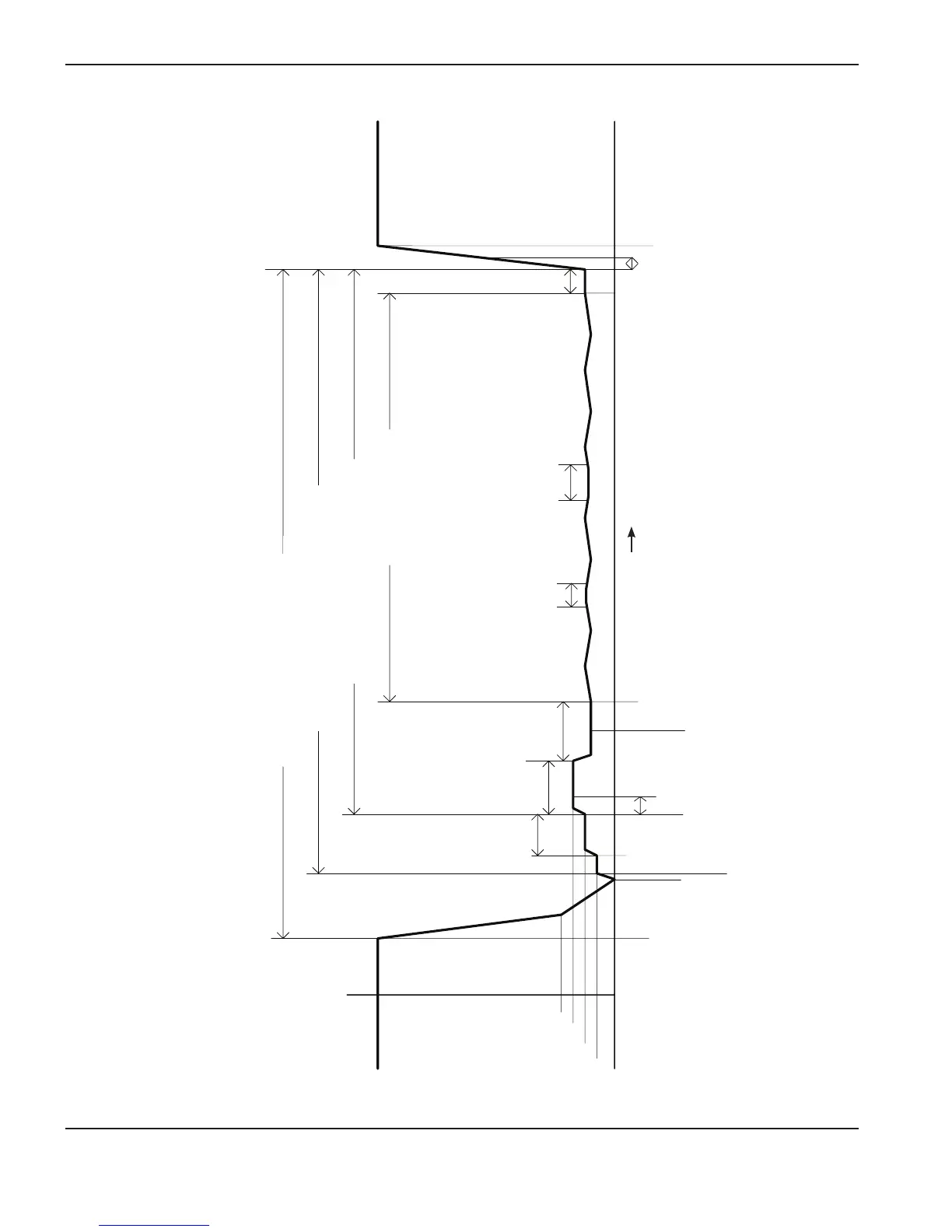

ArcGlide sequence of operation in automatic mode
