1-10 ArcGlide THC Instruction Manual
SPECIFICATIONS
Ethernet connectors Shielded RJ-45e ports
Electrical protection
4000 VDC Ethernet ESD protection, 3000 VDC surge (EFT)
protection for the power line
I/O transmission distance
Up to 100 m (109 yd) (4-wire Cat-5e)
I/O transmission speed 10/100 Mbps auto-negotiation
Operating temperature -10º C to 60º C (14º F to 140º F)

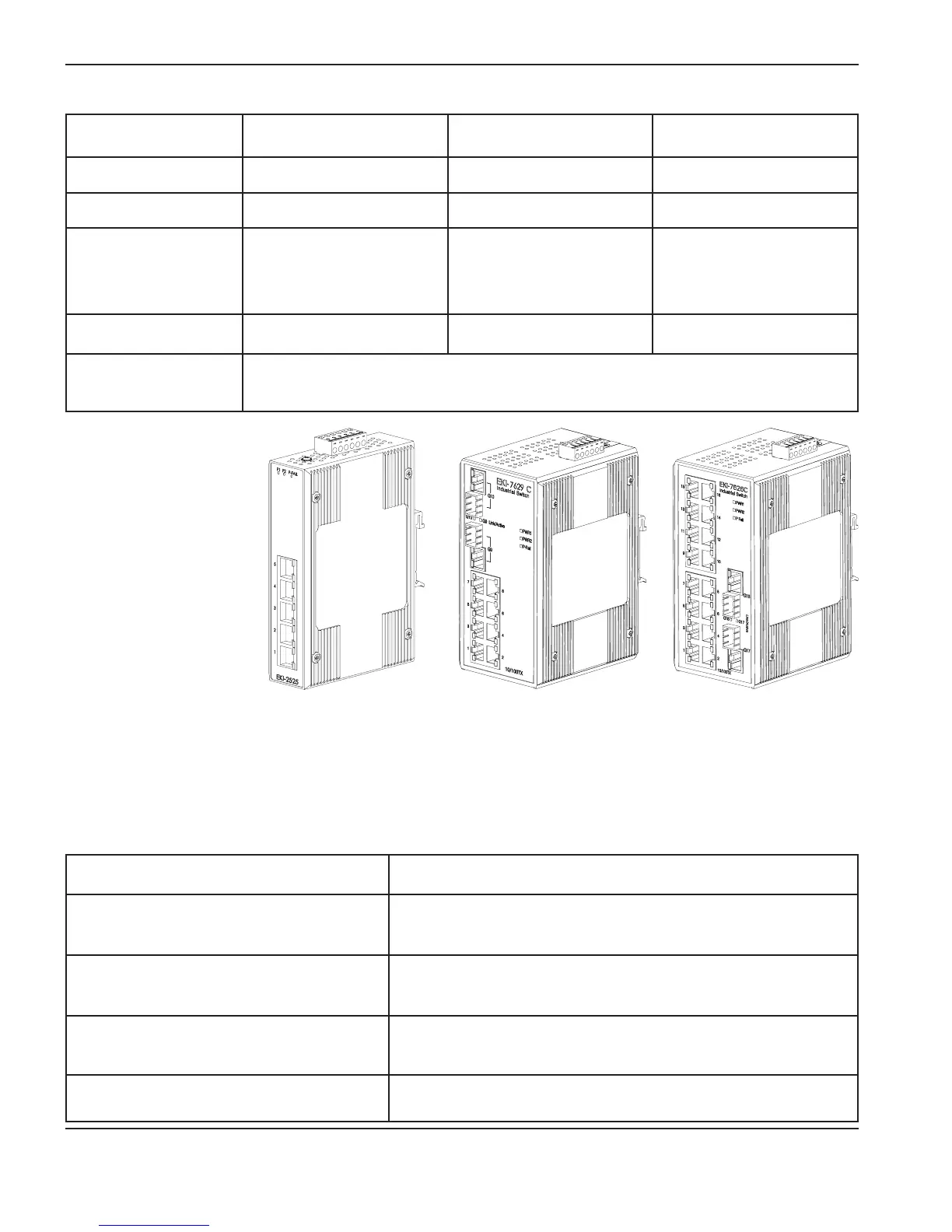

The following table lists the operating specifications for the recommended Advantech Ethernet switches. Refer to the
respective Advantech user manuals for detailed and current information about installing and operating these switches.
If your cutting system does not include one of these Advantech Ethernet switches, use the specifications in the following
table to select an industrial-grade Ethernet switch that will support your plasma cutting system.
5 Ports 8 Ports 16 Ports
Hypertherm part number 005657 005655 005656
Advantech part number EKI-2525I-AE EKI-7629C-AE EKI-7626C-AE
Width x height x depth
37 mm x 140 mm x 95mm
(1.46 in x 5.51 in x 3.74in)
79 mm x 152 mm x 105mm
(3.11 in x 5.98 in x 4.13in)
79 mm x 152 mm x 105mm
(3.11 in x 5.98 in x 4.13in)
Maximum power
consumption
5 W 6.5 W 6.5 W
Power input (not
included)
12 - 48 VDC redundant dual inputs with twisted pair cable.
