Service Procedures for the Cover, Panels, and Connectors
3
62 810440 Service Parts and Procedures Powermax65/85 SYNC

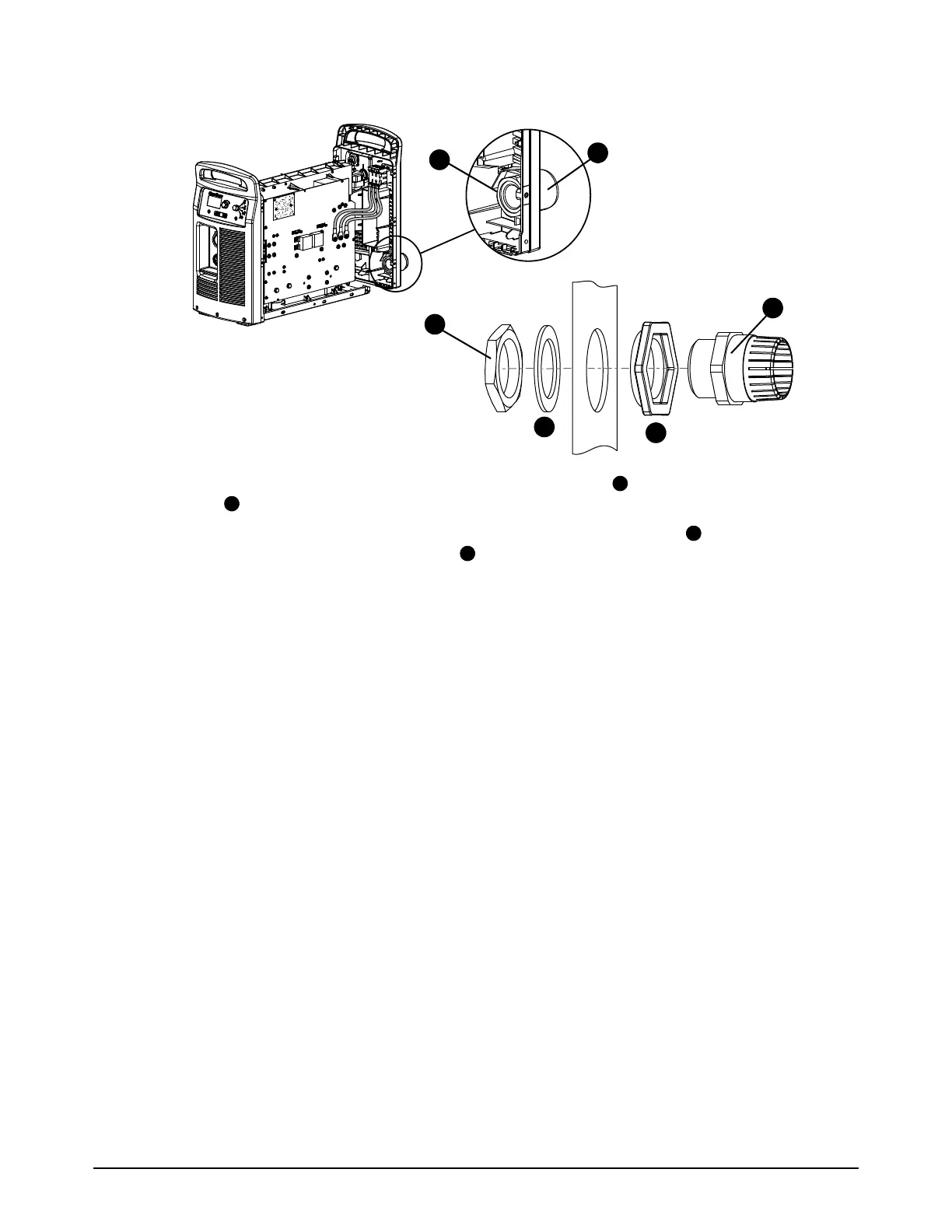

9. Remove the strain relief from the rear panel:
a. On the inside of the plasma power supply, remove the nut . For some models, also remove
the washer.
b. On the outside of the plasma power supply, remove the strain relief . For some models,
also remove the strain relief adapter .
4
1
2
3
1
3
1
2
3
4
