Table 15. MAP 0190: Forms Feed Problems (continued)
Step Questions/Actions Yes No
12.
Check that the rear tractor is installed correctly, and the

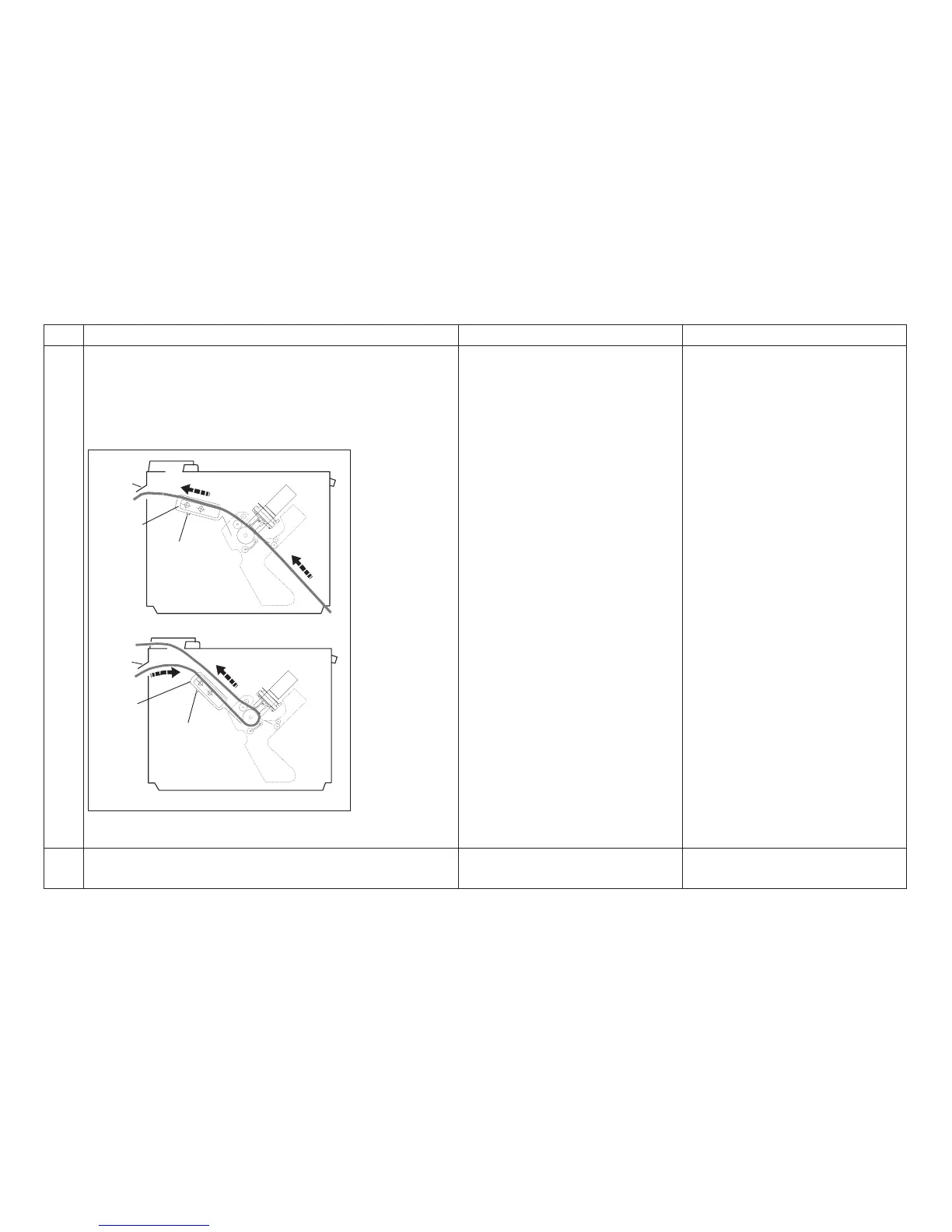

rear tractor paper door is open or removed. The
following figure shows the positions of the rear tractor
for pull mode and push mode. See step 16 on page 112
for details on configuring the tractor.
Tractor in
Pull Mode
Tractor in
Push Mode
Lever
Lever
Rear
Paper
Door
Rear
Paper
Door
e90aff12
Are the rear tractor and the rear paper door OK?
Go to step 13. Go to step 16 on page 112.
13.
Are the forms jamming into the platen during a Load
or Form Feed operation?
Go to step 14 on page 111. Go to step 17 on page 112.
Chapter 1. Diagnosing Problems
110
