To do this, push the retainer lightly toward the front bottom corner of the printer (shown by arrow in
Figure 174) while you tighten the screws.
6. Perform the AFTA adjustment. See “Standard AFTA Service Check and Adjustment” on page 285.
7. Perform the carriage drive belt service check. See “Carriage Drive Belt” on page 279.
8. Perform the bidirectional adjustment. See “Bidirectional Printing” on page 294.
Carriage Support Shaft
Removal
1. Remove the left and right printer side covers.
2. Mark the position of the eccentric adjustment bushing for reference during installation.
e90alocf
Screw C
Screw D

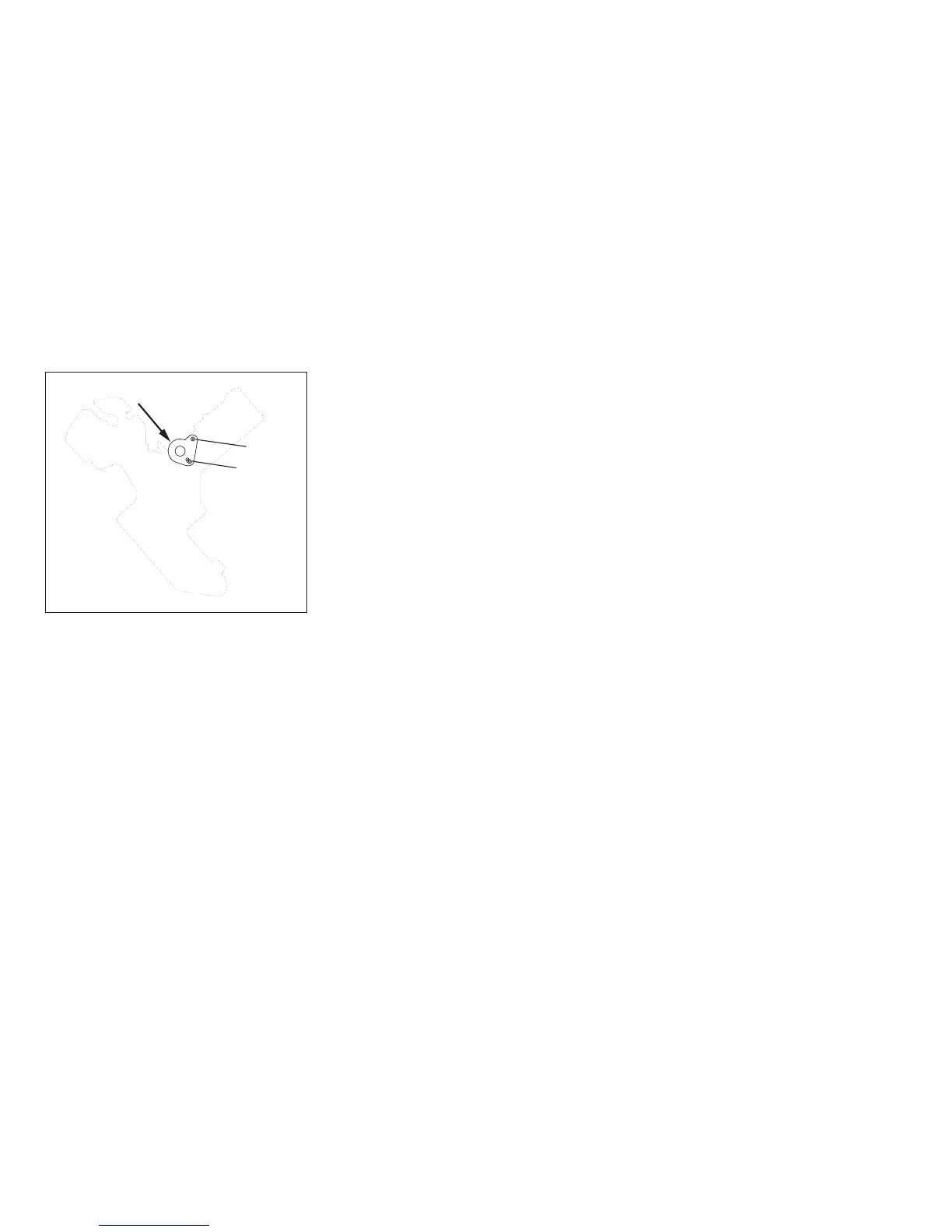

Figure 174. Carriage Left Retainer.
Push Retainer in Direction of Arrow
Chapter 5. Removals and Adjustments 439
