13. Locate and remove from the forms path torn pieces of paper or other foreign material that can cause forms
jams.
14. Perform the “Platen Pinch Roller Assembly Service Check” on page 323.
15. Return to the step that sent you here.
ASF Stacker Service Check
1. Power off (O) the printer.
2. Ensure that the stacker is installed correctly. Spring loaded latches hold the stacker to pins on the printer
frame. You can perform a trial fit with the inner tractor cover in the up position.
3. Ensure that the stacker is connected to the stacker connector in the printer. The connector may become bent,
preventing electrical contact.
4. Locate and remove from the forms path torn pieces of paper or other foreign material that can cause forms
jams.
5. Ensure that the paper bail is in the down position, touching the feed roller assembly (see Figure 157 on
page 423) and that the metal deflector is down (open).
Bin 2 (If
Installed)
Bin 1
Bin 3 (If
Installed)

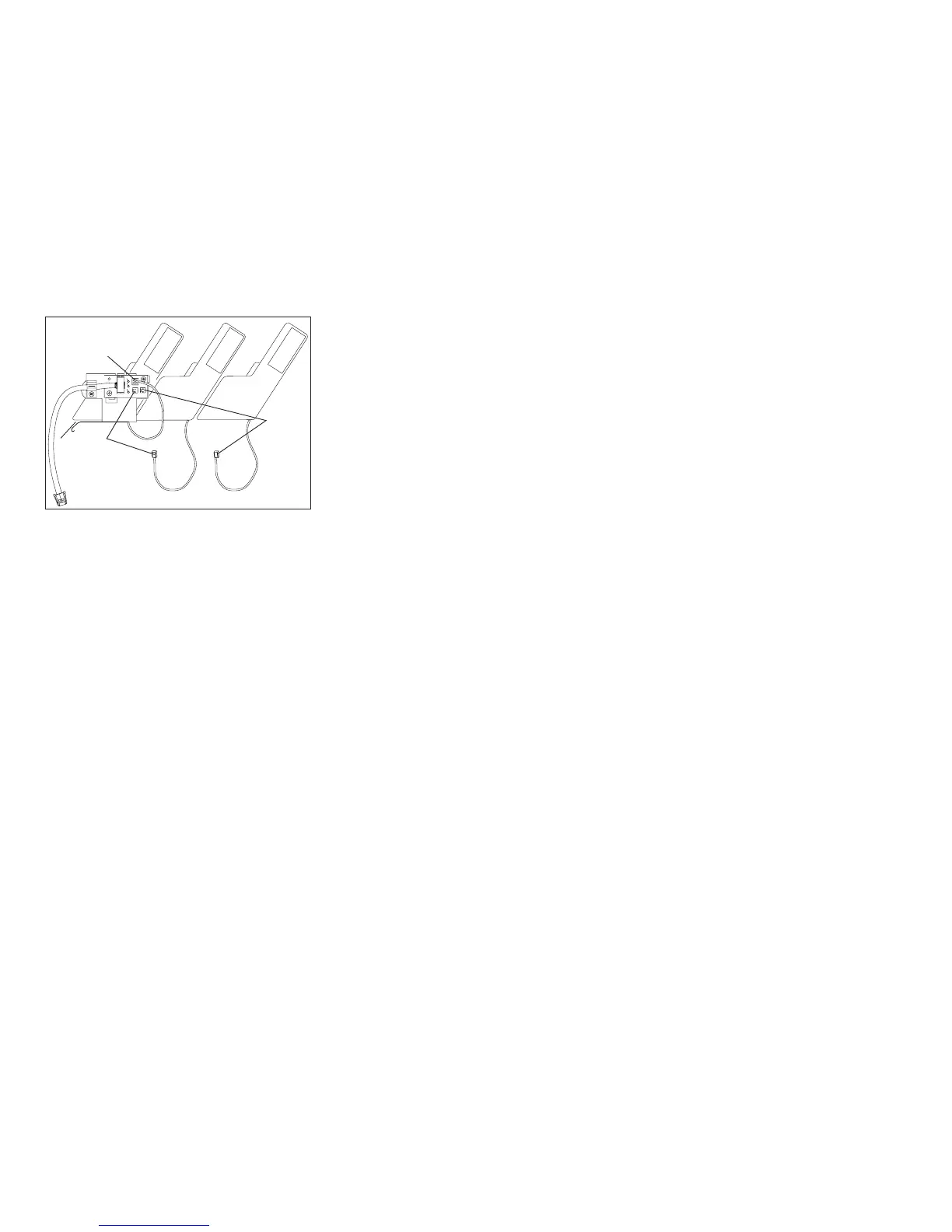

Figure 75. Automatic Sheet Feeder Connectors.
(Viewed From Right Side)
Chapter 5. Removals and Adjustments 322
