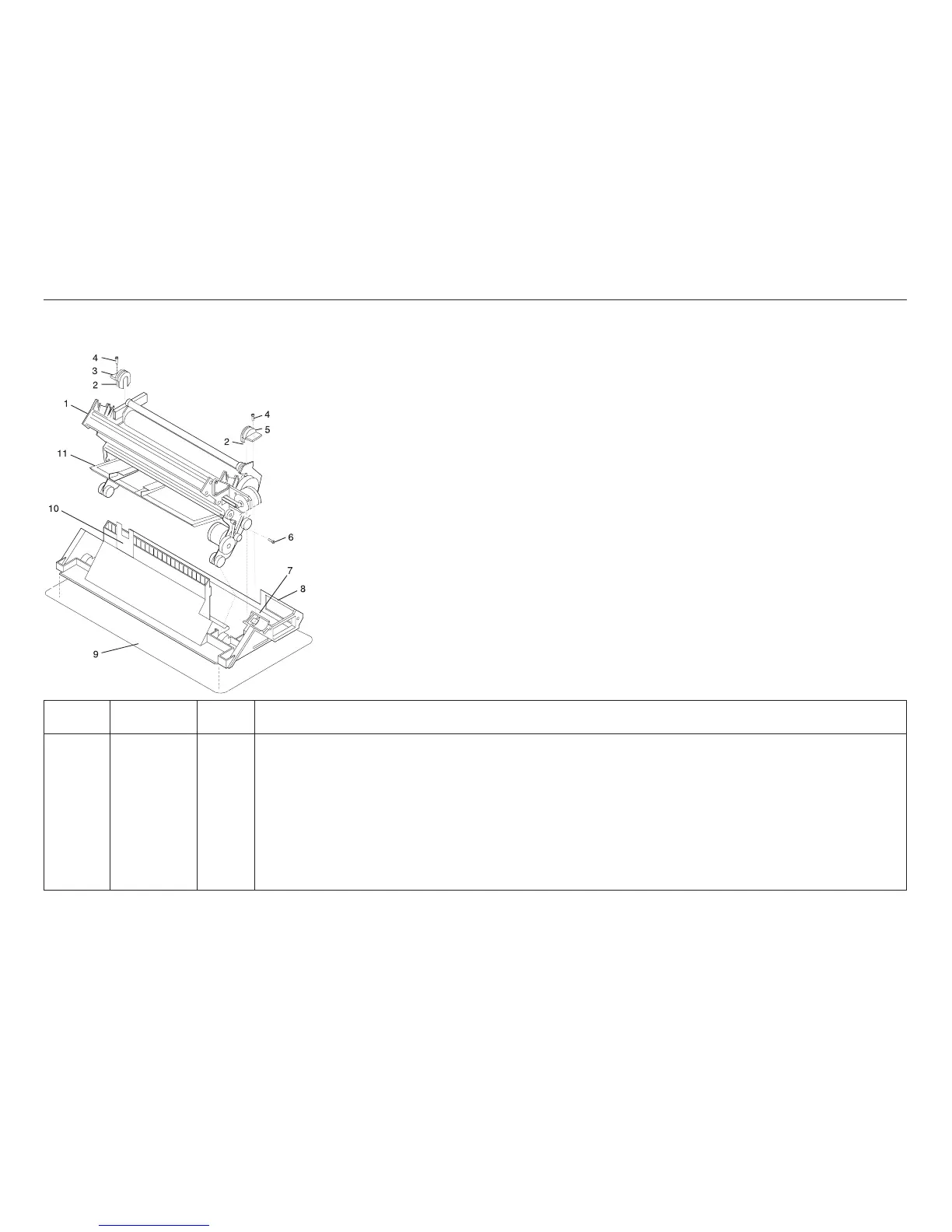

Assembly 3: Printer Mechanical Assembly and Base
Asm–
Index
Part
Number Units Description
3–1 NP Mechanical Assembly
–2 63H6062 2 Tie, Wire
–3 1 Block, Mechanical (PP 08H7353)
–4 2 Screw (PP 08H7356)
–5 1 Block, Mechanical (PP 08H7353)
–6 1 Screw, Manual Sheet Feed Tray (PP 08H7356)
–7 08H7272 1 Shield, Base, Models A00, 001, 002
–7 01P7683 1 Shield, Base, Model 003
–8 08H7273 1 Base Assembly
