Carriage Drive Motor Assembly
CAUTION:
The carriage motor may be hot. Wait for it to cool down.
Removal
1. Remove the printer covers. See “Printer Covers” on page 347.
2. Disconnect the carriage motor connector from the logic board. Note the location of the connector, the cable
path, and the cable ties to aid installation.
Note: If the motor is being removed only to access other parts, do not disconnect the connector.
Carriage
Motor

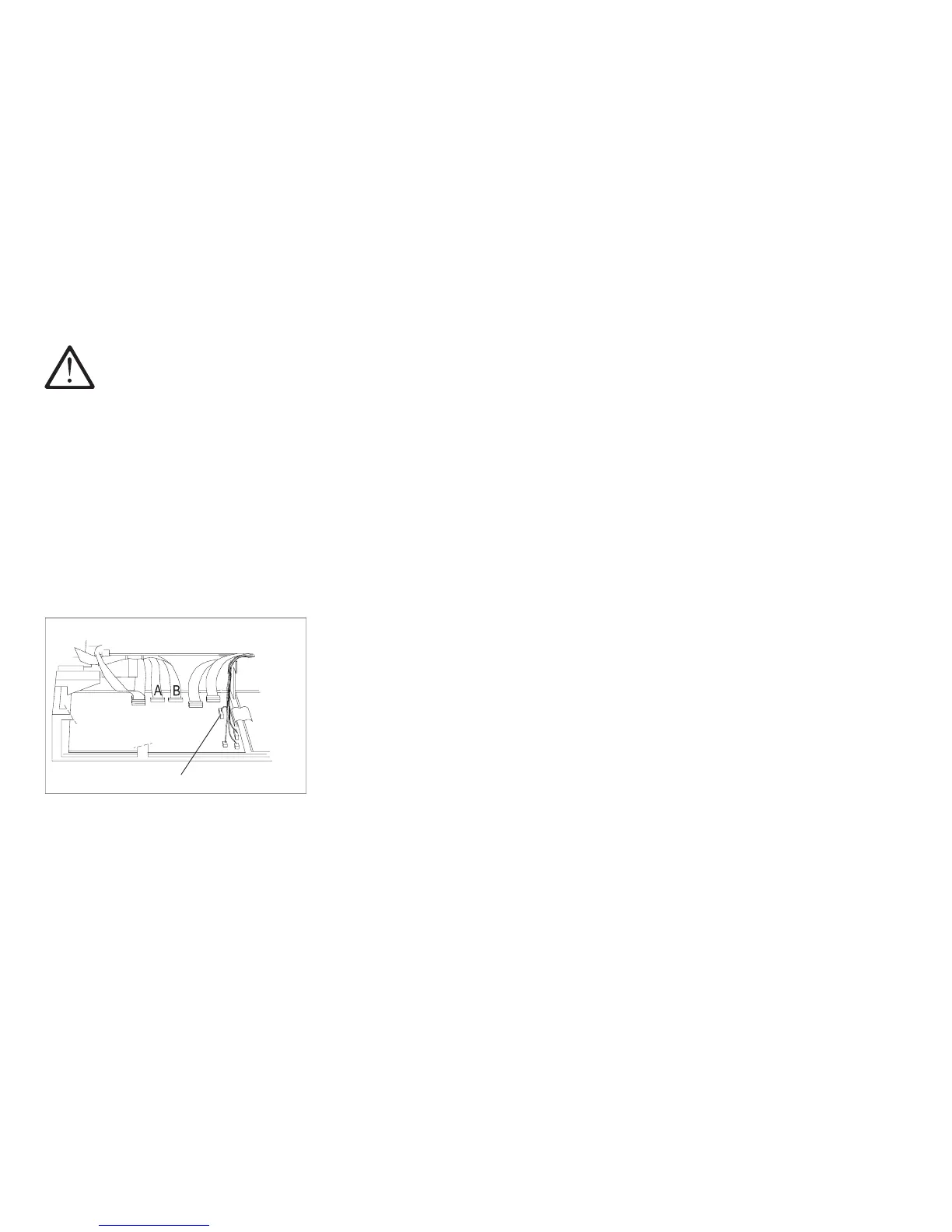

Figure 149. Carriage Motor Connector Location - Model A00 Early-Level
Chapter 5. Removals and Adjustments 415
