Note: Figure 148 shows the bellcrank removed, for clarity. Rotate the bellcrank only to remove or install the gear
and spring.
Groove for e-clip
e90aas2

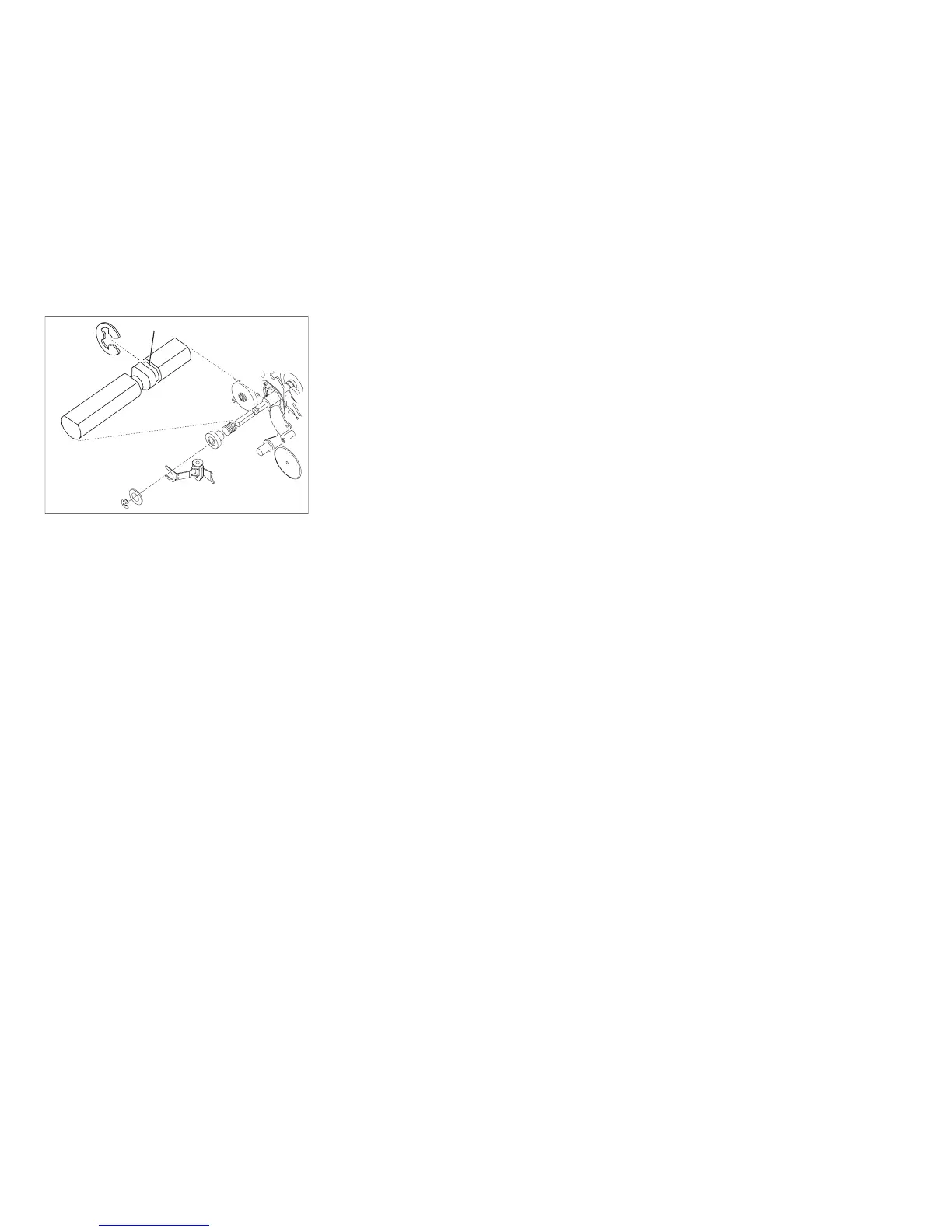

Figure 148. Detail of Retaining Clip on the Platen Shaft.
The retaining clip (shown as ’e-clip’) is installed in the
shallow groove next to the V-groove in the shaft.
Chapter 5. Removals and Adjustments 414
