IBM 4247 User Manual

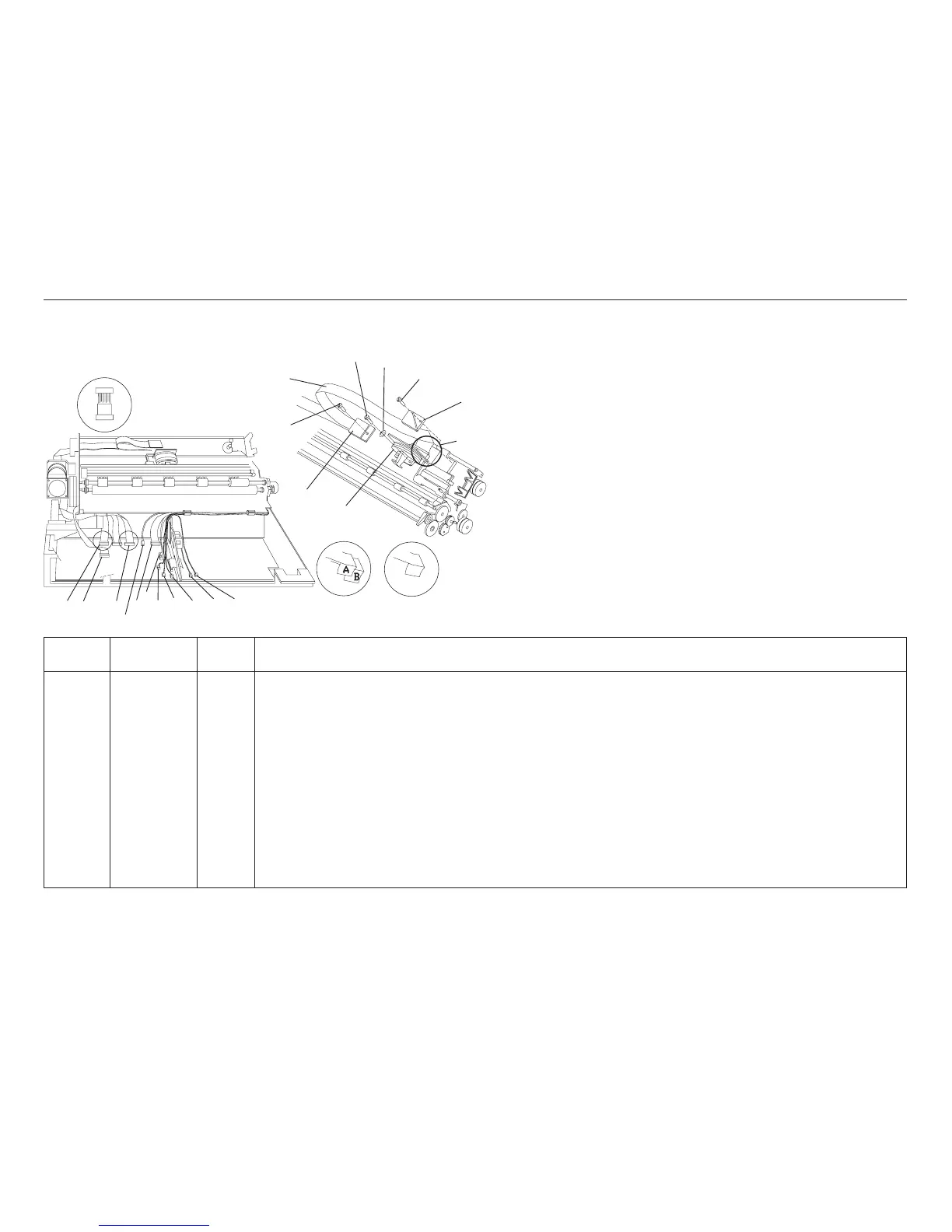

Assembly 9: Printhead and Cables
e90apc8
1
1A
2
3
3
4
5
6
7
8
9
10
11
12
13
18
14
15
16
17
DETAIL - A -
- B -
A
B
B
DETAIL - B -
(Model A00, 001,
003)
DETAIL - B -
(Model 002)
Asm–
Index
Part
Number Units Description
9–1 08H7249 1 Cable, Operator Panel
–1A 08H7267 1 Filter Assembly, EMI (Detail A)
–2 08H7250 1 Cable, Stacker
–3 08H7247 1 Cables, Printhead, 18-Wire (Model A00 and Model 001) (Detail B)
–3 90H0025 1 Cables, Printhead, 9-Wire (Model 002) (Detail B)
–4 08H7248 1 Cable, Tractor Assembly
–5 08H7251 1 Cable, Sensor Assembly
–6 08H7306 1 Motor, Carriage
Includes Motor and Cable
–7 08H7289 1 Motor, Paper Feed
Includes Motor and Cable
–8 08H7324 1 Motor, Ribbon
Includes Motor and Cable
Chapter 6. Parts Catalog
479
