IBM 4247 User Manual

Automatic Sheet Feeder Paper Path

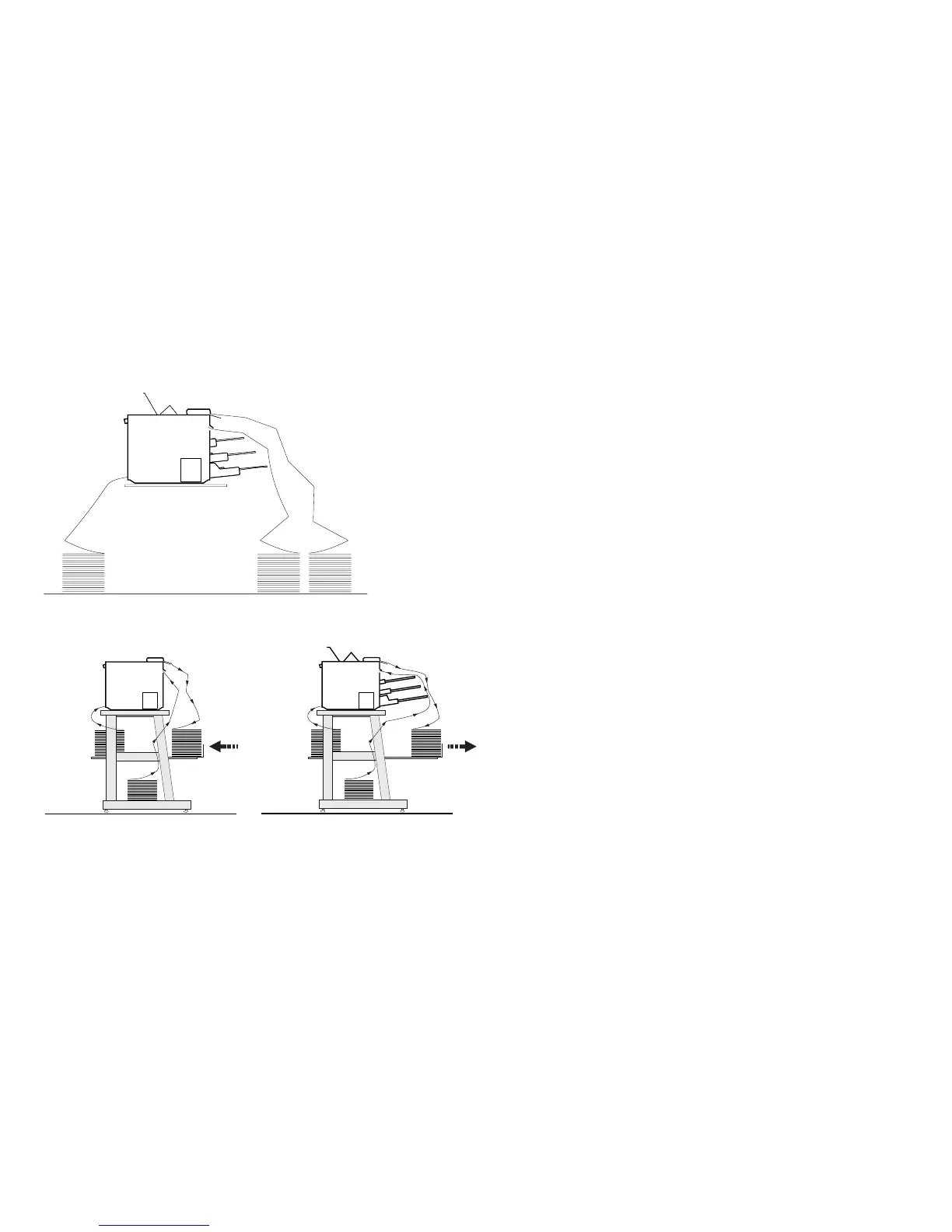

The next figure shows the dual push forms path along with the automatic sheet feeder (ASF). If using any of the
available forms paths along with the ASF, ensure the input and output stacks that are in the rear of the printer are
placed far enough away from the ASF bins so that the bins do not interfere with the movement of the forms.
Floor
Input
Input
Output
e61a0164
Forms Stacking With the 4247 Printer Stand
Front
Input
Front
Input
Rear
Input
Rear
Input
Output Output
e90aas3
Dual Push Path Dual Push Path with ASF
Note: If the printer is set up for dual push paths and you are using only 1 path, use the front input for the front
push, rear pull, or push-pull forms paths. Use the rear input for the rear push forms path.
Appendix B. Supplies, Forms, Paths, & Environmental Considerations 545
