5. Rotate the paper bail toward the back of the printer, closing it as far as it will go.
A paper bail without tabs on the end caps must be installed in the “closed” position. See Figure 157 on
page 423.
6. Reinstall the ribbon cartridge.
Manual Sheet Feed Tray
Removal
1. Remove the printer covers. See “Printer Covers” on page 347.
2. Loosen the right side screw and rotate the stop.
3. Slide the tray assembly to the left to remove.
Plastic
Strip
Paper Bail
Assembly

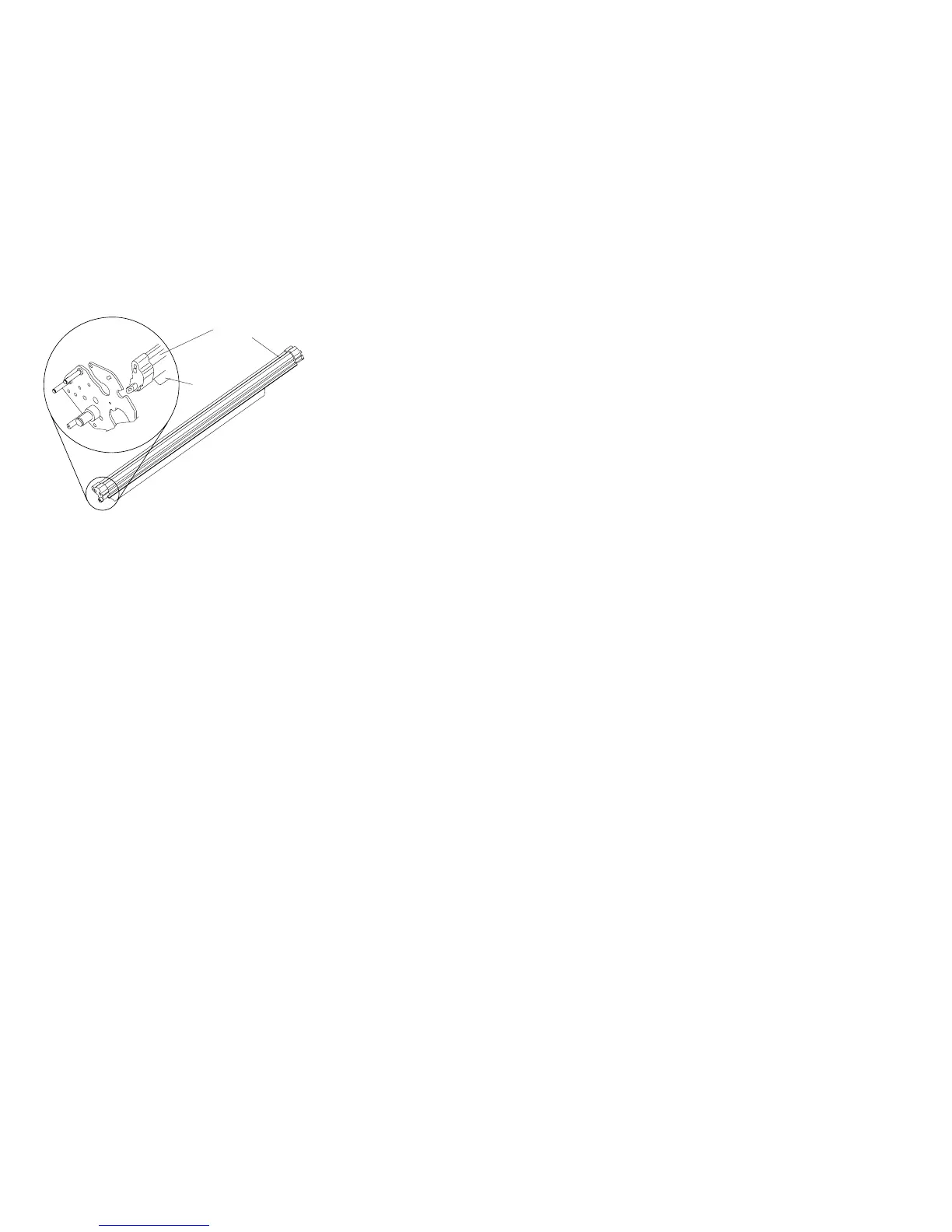

Figure 159. Installing Paper Bail While Noting Position of End Cap
Chapter 5. Removals and Adjustments 425
