Operator Panel
Removal
1. Power off (O) the printer.
2. Open the top cover.
3. Press on the latch under the top center of the operator panel and pull forward approximately 10 mm (0.393
in.).
4. Lift the operator panel and disconnect the connector.
Replacement
Follow the removal steps in reverse order.
Latch

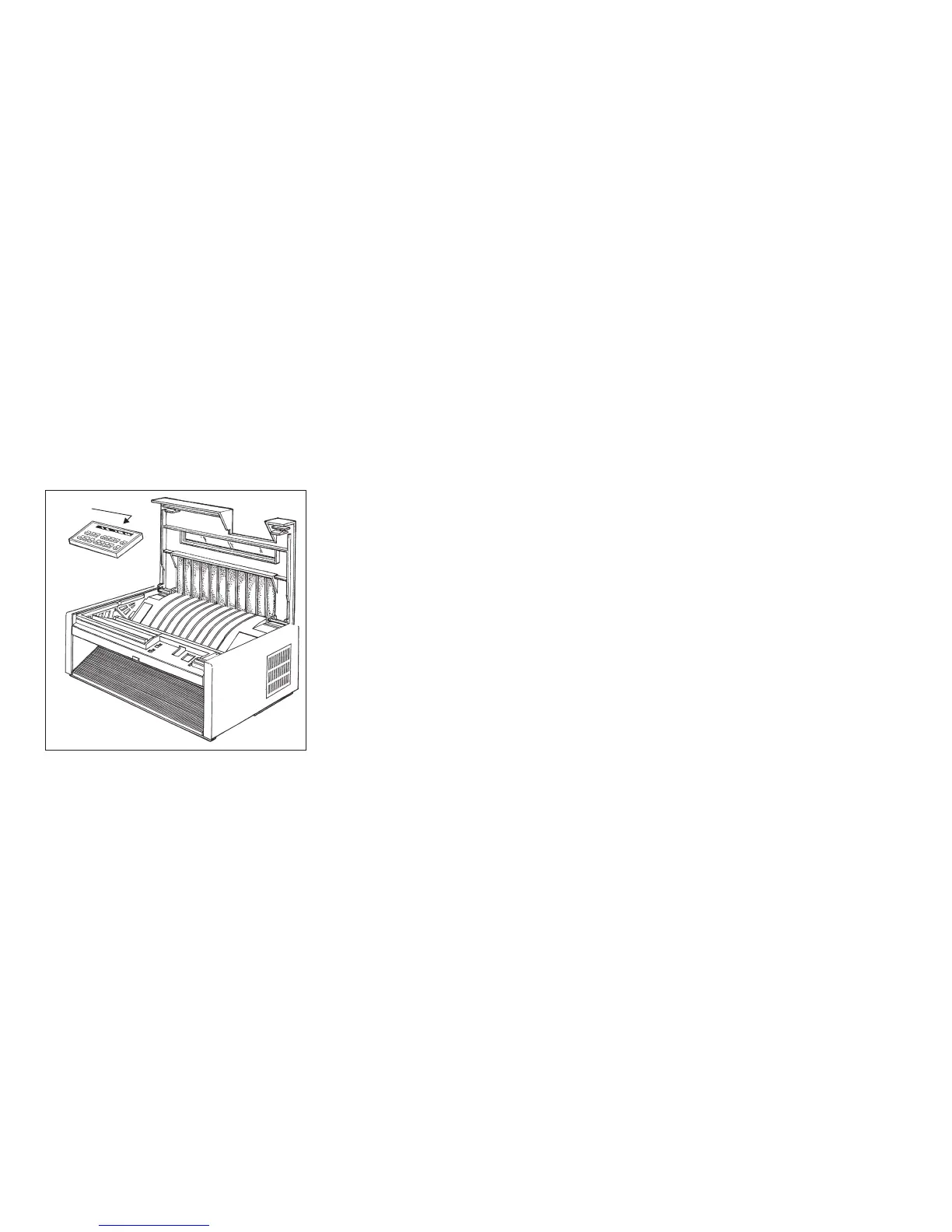

Figure 105. Operator Panel - Removal
Chapter 5. Removals and Adjustments 355
