Paper Feed Motor
CAUTION:
The paper feed motor may be hot. Wait for it to cool down.
Removal
1. Remove the printer covers. See “Printer Covers” on page 347.
2. Remove the printer mechanical assembly. See “Printer Mechanical Assembly” on page 444.
3. Loosen the paper belt tension lever screws and remove the paper drive belt from the paper feed motor gear.
Note the path of the belt to aid installation.
4. Remove the 3 mounting screws and remove the motor.
Screws
Belt

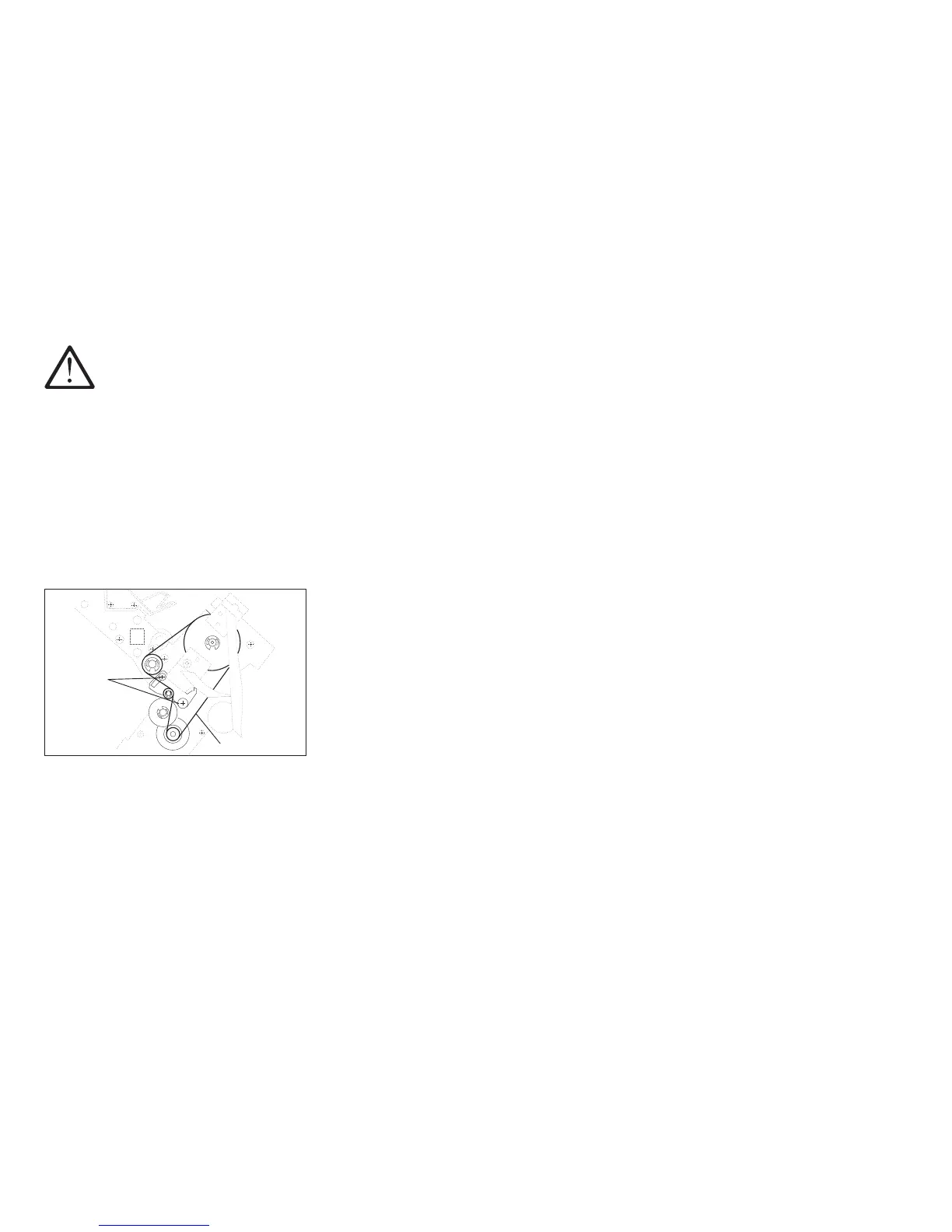

Figure 182. Paper Feed Motor Belt.
(Viewed From Right Side)
Chapter 5. Removals and Adjustments 447
