Use the following table to ensure the correct positions:
Table 47. Paper Bail and Paper Guide Positions
Selected Paper Path Forms Guide
Metal Deflector
Paper Bail
Front Push Open Closed
Manual Sheet Feed Open Closed
Rear Push Open Closed
ASF Open Closed
Rear Pull Closed Removed
Front Push-Pull Closed Closed
4. The rear tractor push-pull selector must be set correctly.
Metal Forms Guide Deflector
Closed ( )
Position
Metal Forms Guide Deflector
Open ( )
Position
PUSH
PULL

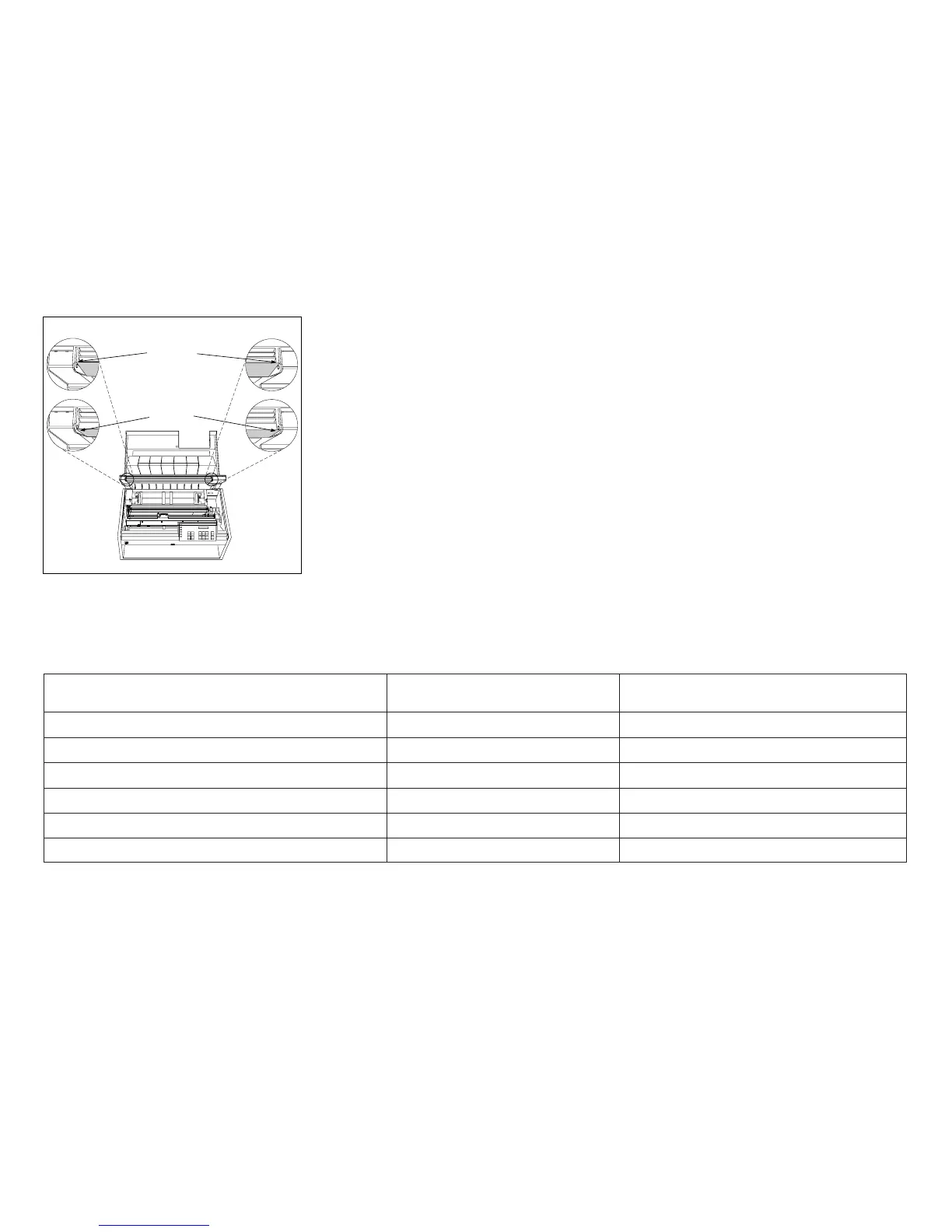

Figure 57. Paper Guide Metal Deflector, CLOSED and OPEN
Chapter 5. Removals and Adjustments 303
