3. Ensure that the paper bail is in the lower, detented position (touching the feed roller assembly). See Figure 56
on page 302.
4. Ensure that the metal forms guide deflector is in the open (down) position. See Figure 57 on page 303.
5. Ensure that the metal forms guide deflector is in the open (down) position. See Figure 57 on page 303.
6. Clean the pinch rollers and the lower feed rollers with isopropyl alcohol (PN 2155966):
Platen
Pinch
Rollers
Paper
Bail
Upper
Feed
Roller
Lower
Feed
Roller

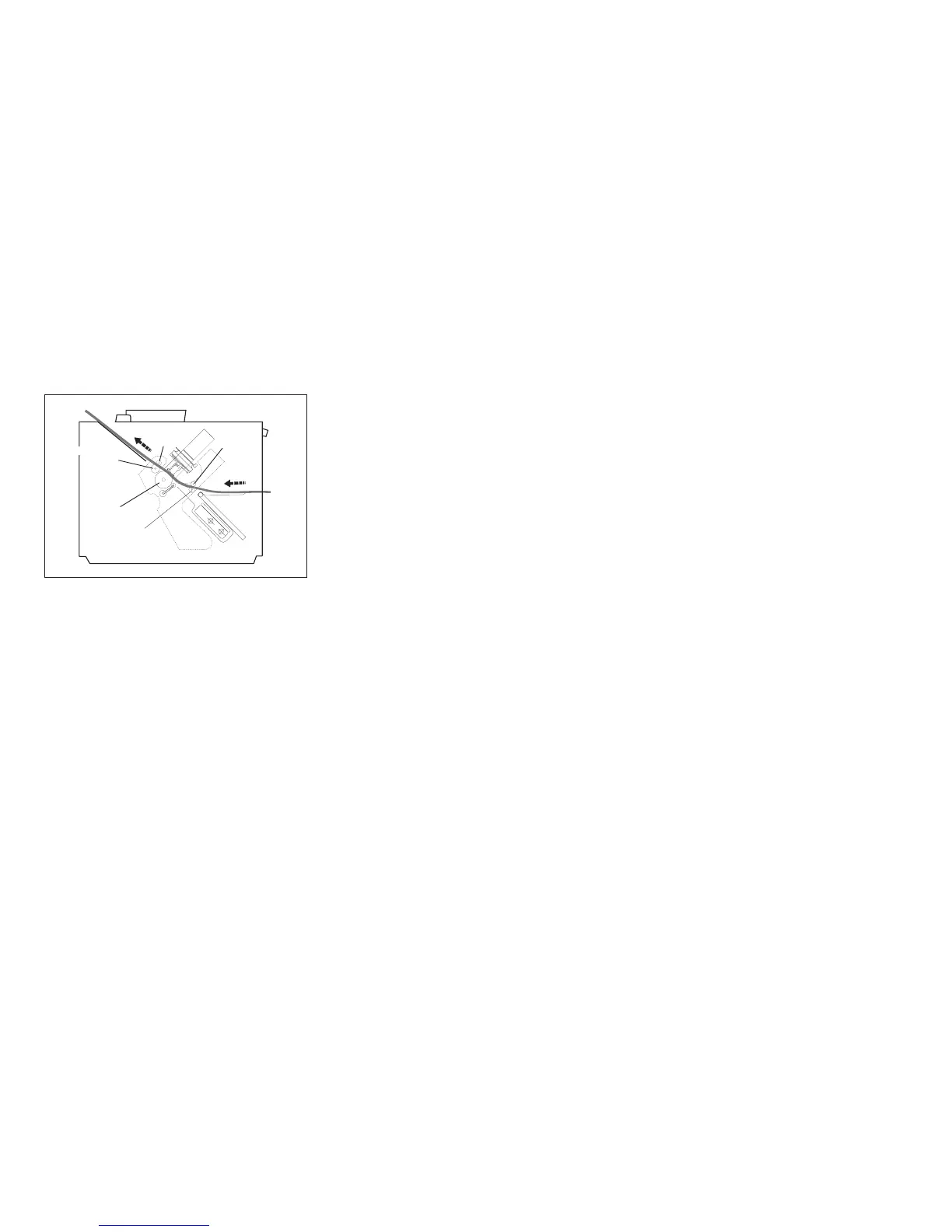

Figure 72. Manual Sheet Feed Path. (Viewed From Left Side)
Chapter 5. Removals and Adjustments 318
