8. Inspect the printhead mask for wear, damage, and correct installation. Ensure the corners of the forms
are not jamming in the diamond-shaped hole, or catching on the adhesive of the mask.
To inspect both sides of the mask, remove the printhead and open the gap.
To replace the printhead mask, remove the support shaft and platen to gain access to the front of the
carriage.
9. Inspect for wear or damage the plastic shields that cover the platen.
Carriage
Shaft
Retainer
Retainer
Support
Shaft
E90APH6

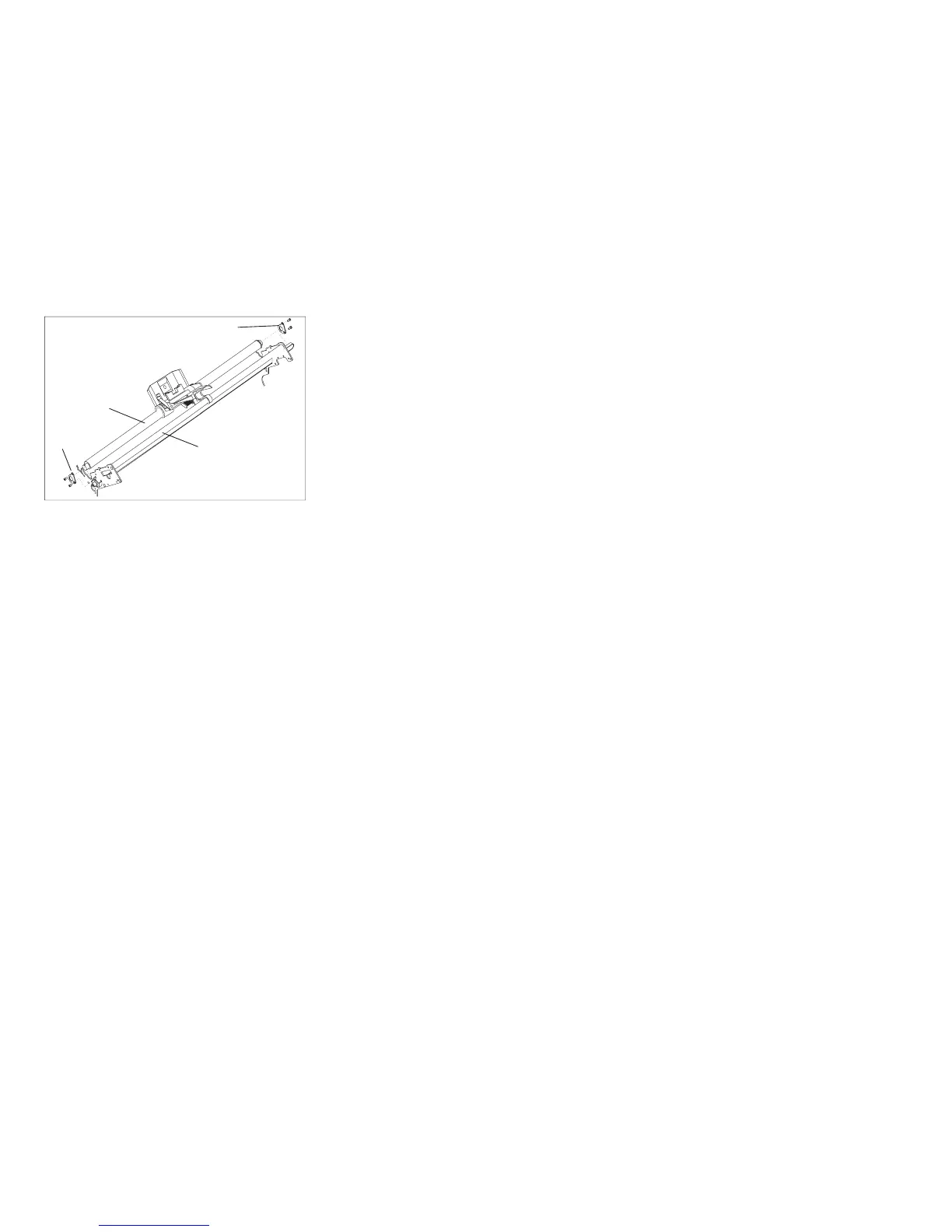

Figure 91. Carriage Shaft Components.
Viewed From Top
Chapter 5. Removals and Adjustments 337
