Page #350 background imageLoading...
Page #350 background image
9. Remove the operator panel.
a. Press on the latch under the top center of the operator panel and pull forward approximately 10 mm (0.39
in.).
b. Lift the operator panel and disconnect the connector.

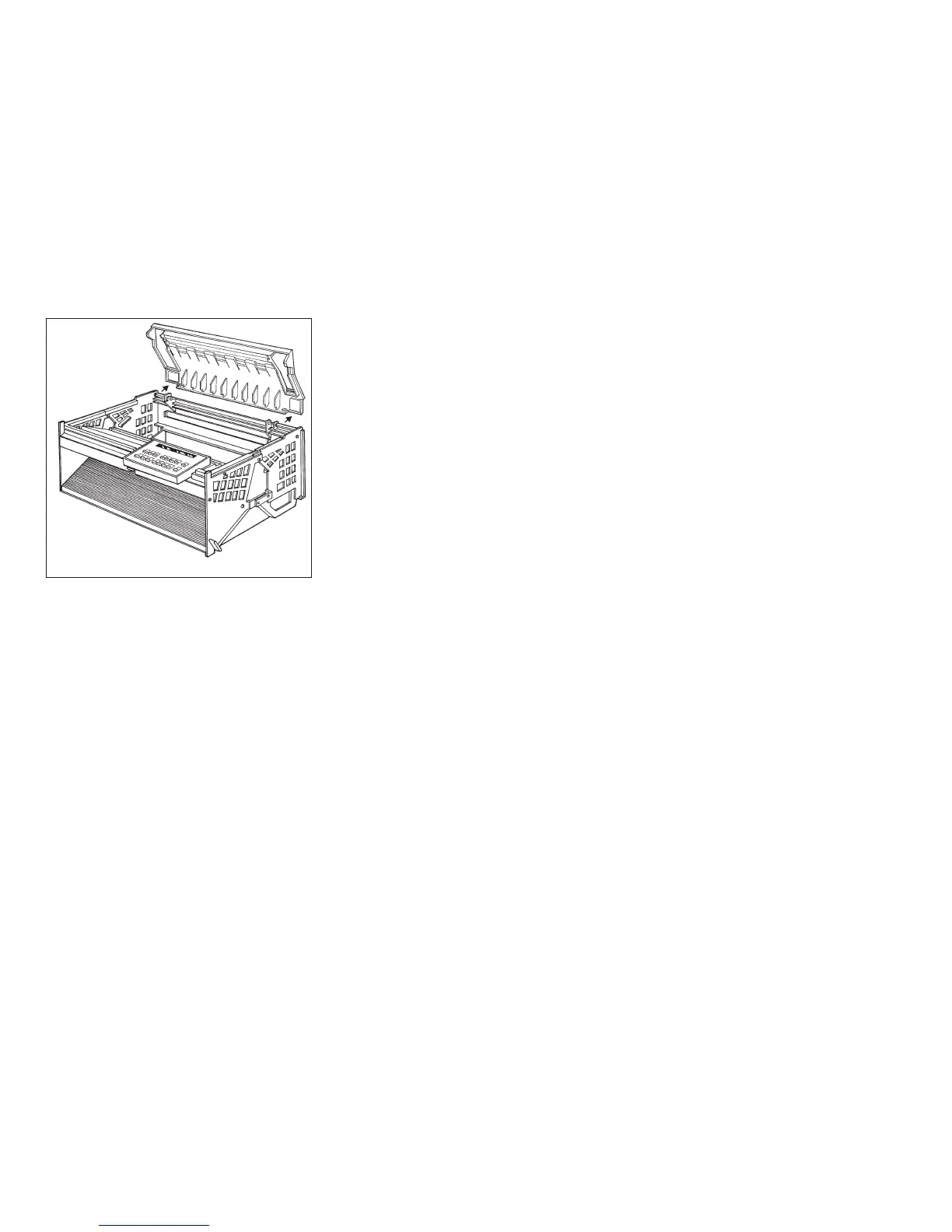

Figure 98. Paper Guide
Chapter 5. Removals and Adjustments 350
