IBM 4247

4. Lift the rear of the board and pull to remove.
Replacement
Follow the removal steps in reverse order.
Note: When installing the green/yellow ground wire, the second star washer must be located between the wire
lug and the frame.

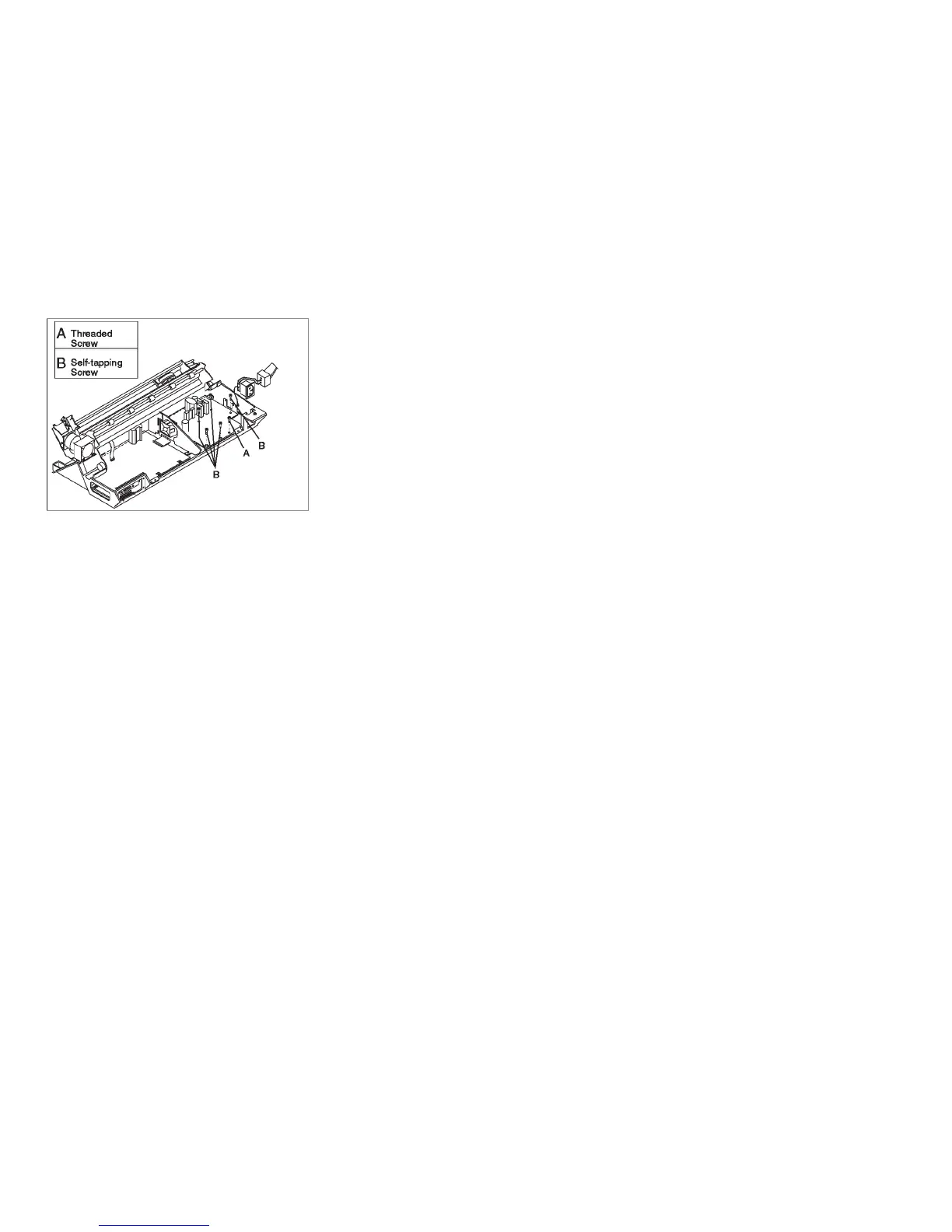

Figure 132. Power Supply Screws
Chapter 5. Removals and Adjustments 402
