4. Remove the ribbon motor mounting screws and remove the ribbon drive motor. Note the type and location of
each screw to aid installation.
5. If the drive spool has a screw, remove the screw then lift the shaft out of the bracket.
If the drive spool does not have a screw, remove the retaining clip from the drive shaft.

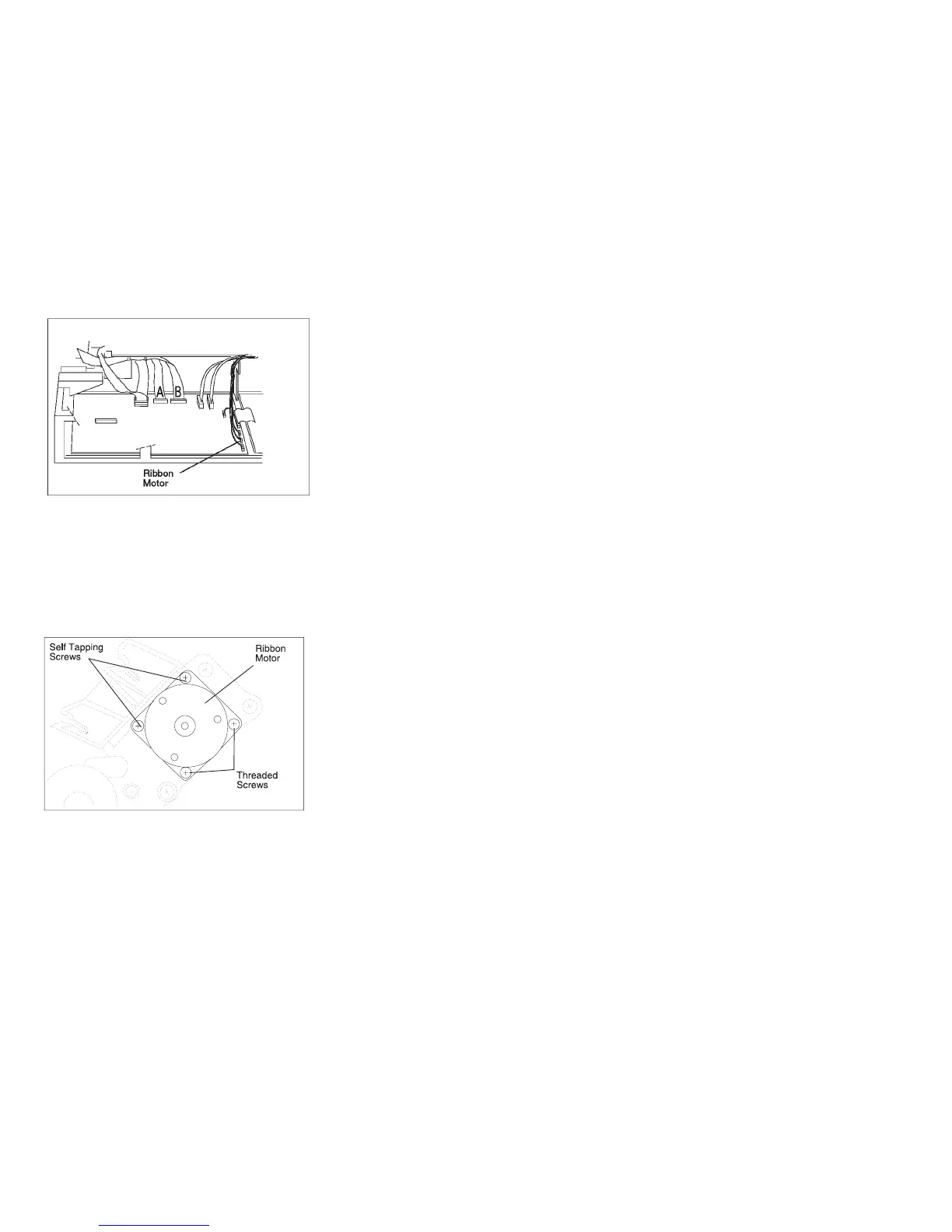

Figure 134. Ribbon Drive Motor Connector - Model A00 Late-Level and Models 001, 002, and 003.
Models 001
and 003 have connectors A and B. Model 002 has only connector B.
Figure 135. Ribbon Motor Screws.
(Viewed From Left Side)
Chapter 5. Removals and Adjustments 404
