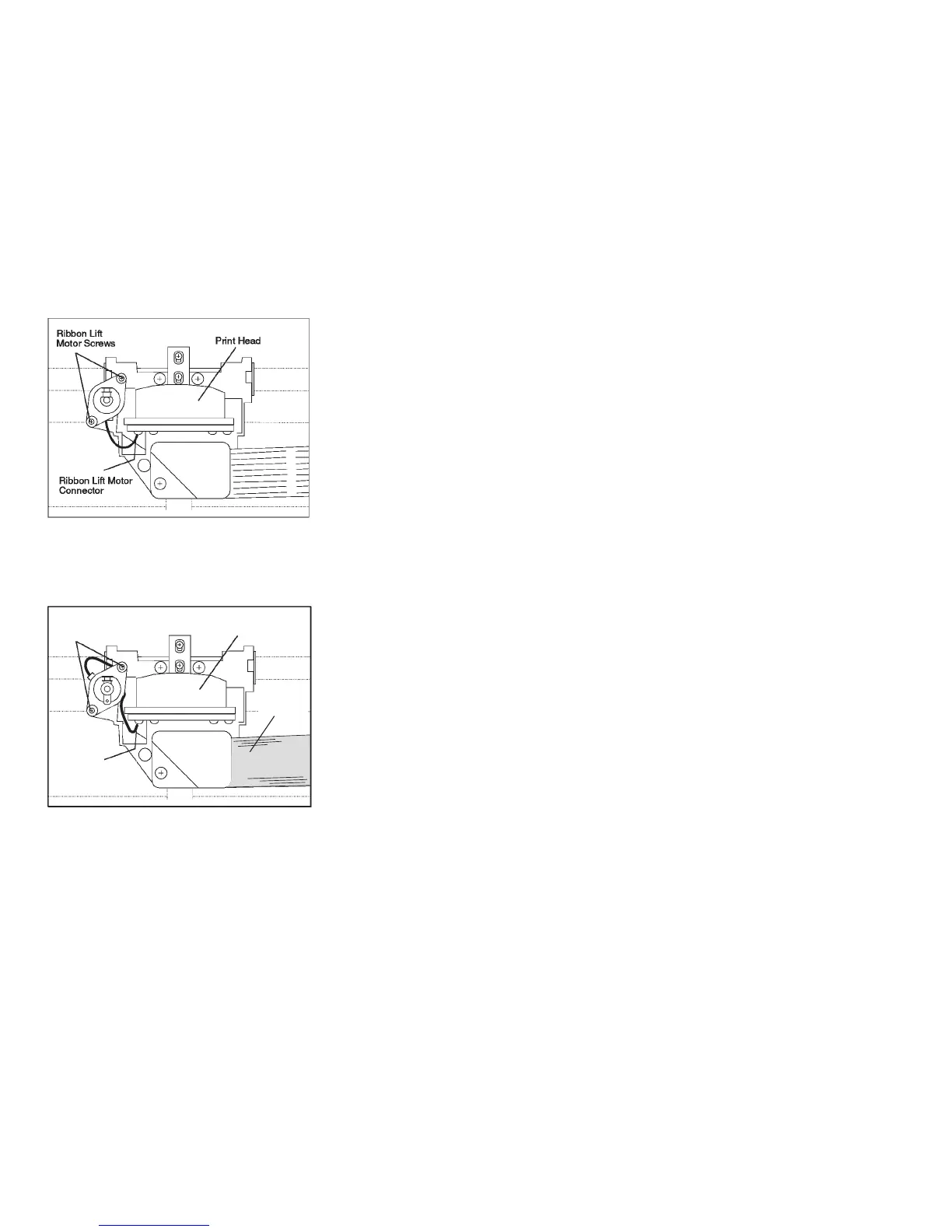

Figure 137. Ribbon Lift Motor - Original.
(Viewed From Top)
Printhead
Ribbon Lift
Motor Screws
Ribbon Lift Motor
Connector
Printhead
Cable
E90AR
B12
Figure 138. Ribbon Lift Motor - New.
(Viewed From Top)
Chapter 5. Removals and Adjustments 406
