Remove the lower feed roller retaining clip (called 'C-clip' in Figure 171) and the lower feed roller gear.
6. Perform the following:
a. Remove the 2 screws on each end that hold the manual sheet feed tray frame, and remove the frame.
b. Remove the retaining clip (called 'C-clip' in Figure 172 on page 437 from the lower feed roller shaft on the
right side, and remove the lower feed roller assembly.
Lower Feed
Roller Gear
and C-clip
Access Holes
for Tension
Screws

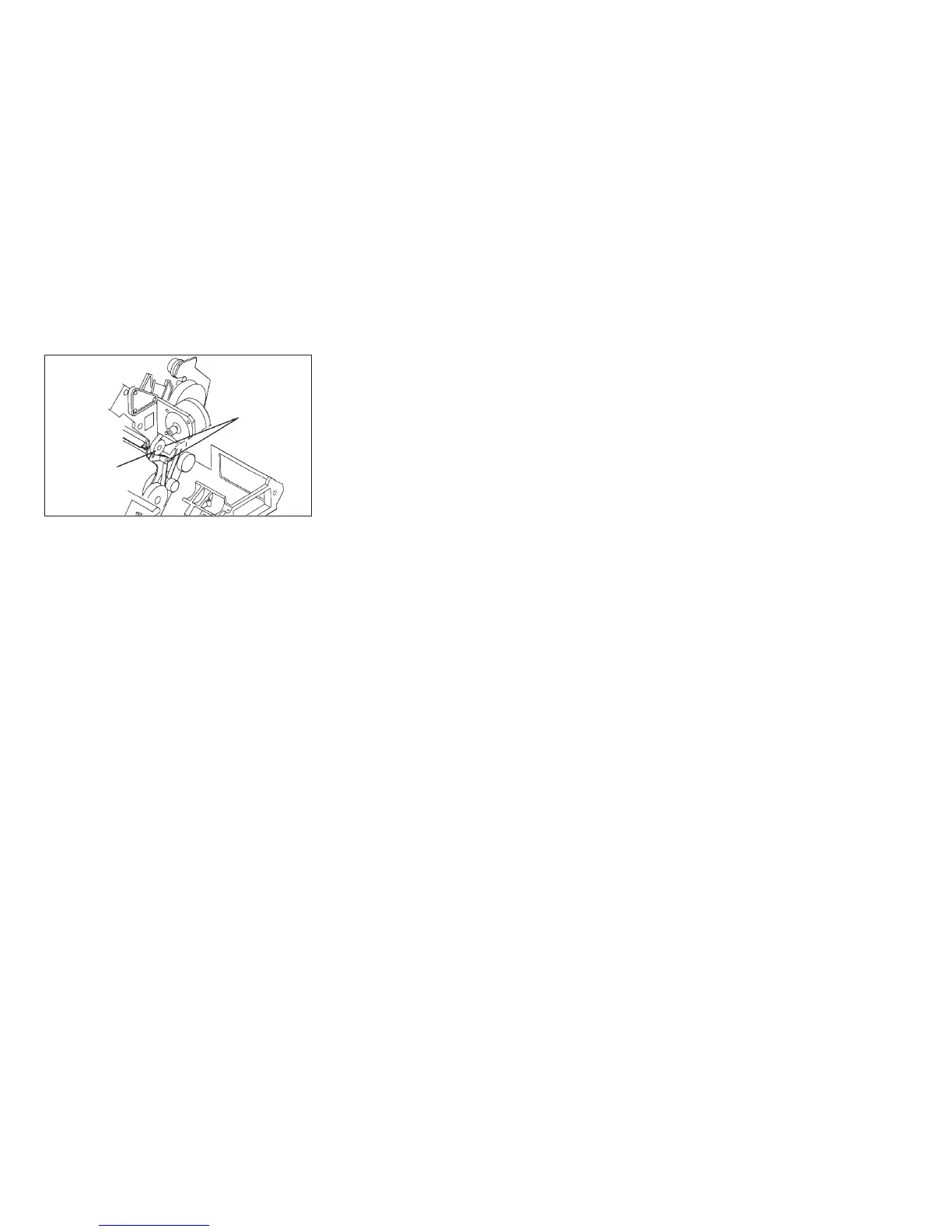

Figure 171. Lower Feed Roller Drive Pulley
Chapter 5. Removals and Adjustments 436
