1 USB connector on the disk controller and USB riser card

2 USB cable

c. Grasp the blue lockbar (2 in Figure 78 on page 91) and slide it toward the USB riser-card

assembly (3) to the unlock position and remove the USB cable (1) from the connector.

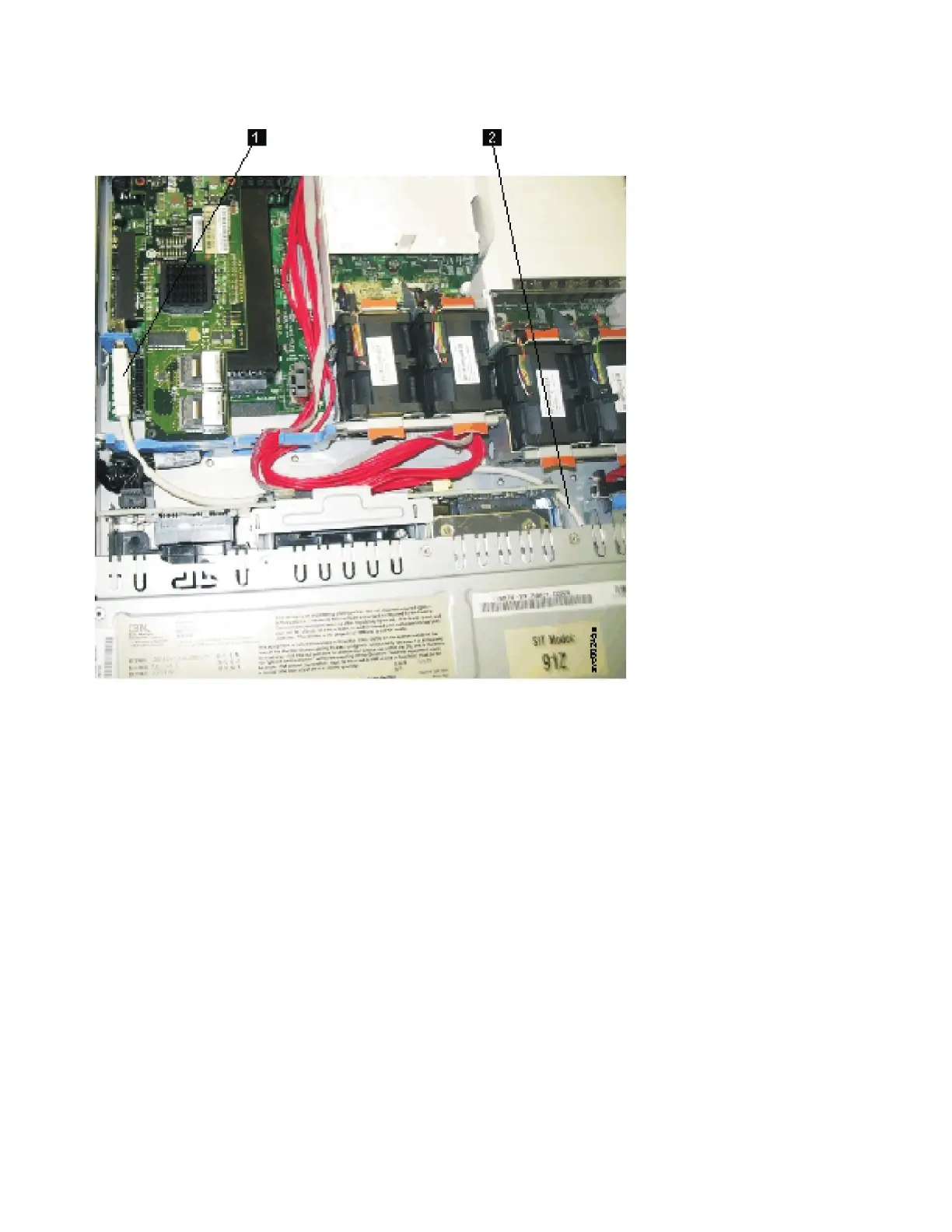

Figure 77. USB service-controller cable connected to the disk controller and USB riser card (SAN Volume Controller

2145-CF8 shown)

90 IBM SAN Volume Controller Hardware Maintenance Guide
