IBM SAN Volume Controller 2145-CG8 User Manual

Replacing the SAN Volume Controller 2145-8G4 cable retention bracket
The SAN Volume Controller 2145-8G4 uses one of two different cable-retention brackets. Depending on
which bracket you have, use the appropriate instructions to remove and replace the cable-retention
bracket.
v If your cable-retention bracket looks like the following, go to “Replacing the cable-retention bracket -
option A.”
v If your cable-retention bracket looks like the following, go to “Replacing the cable-retention bracket -
option B” on page 44.
Replacing the cable-retention bracket - option A:
svc00363

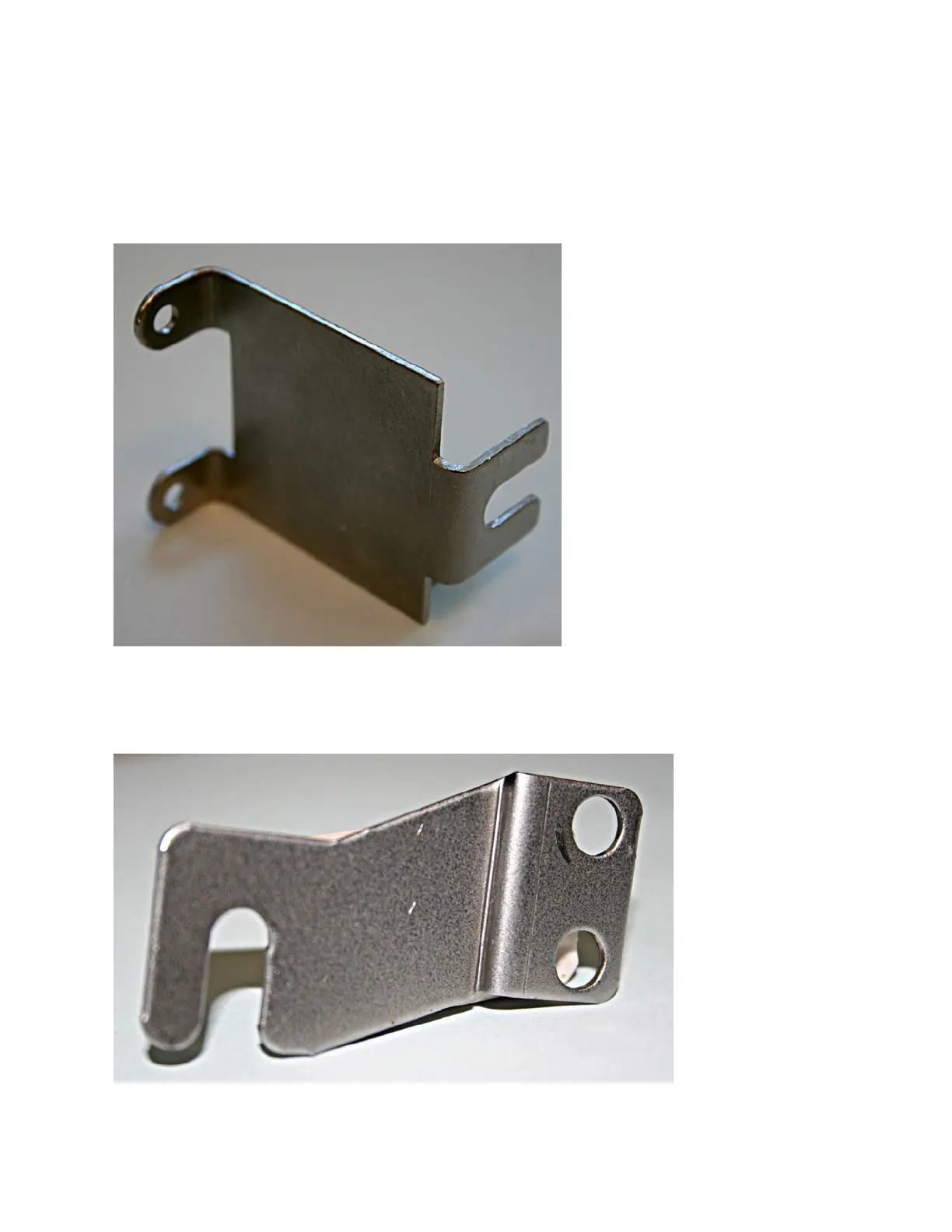

Figure 28. SAN Volume Controller 2145-8G4 cable retention bracket - type A
svc00362
Figure 29. SAN Volume Controller 2145-8G4 cable retention bracket - type B
Chapter 2. Removing and replacing parts 43
