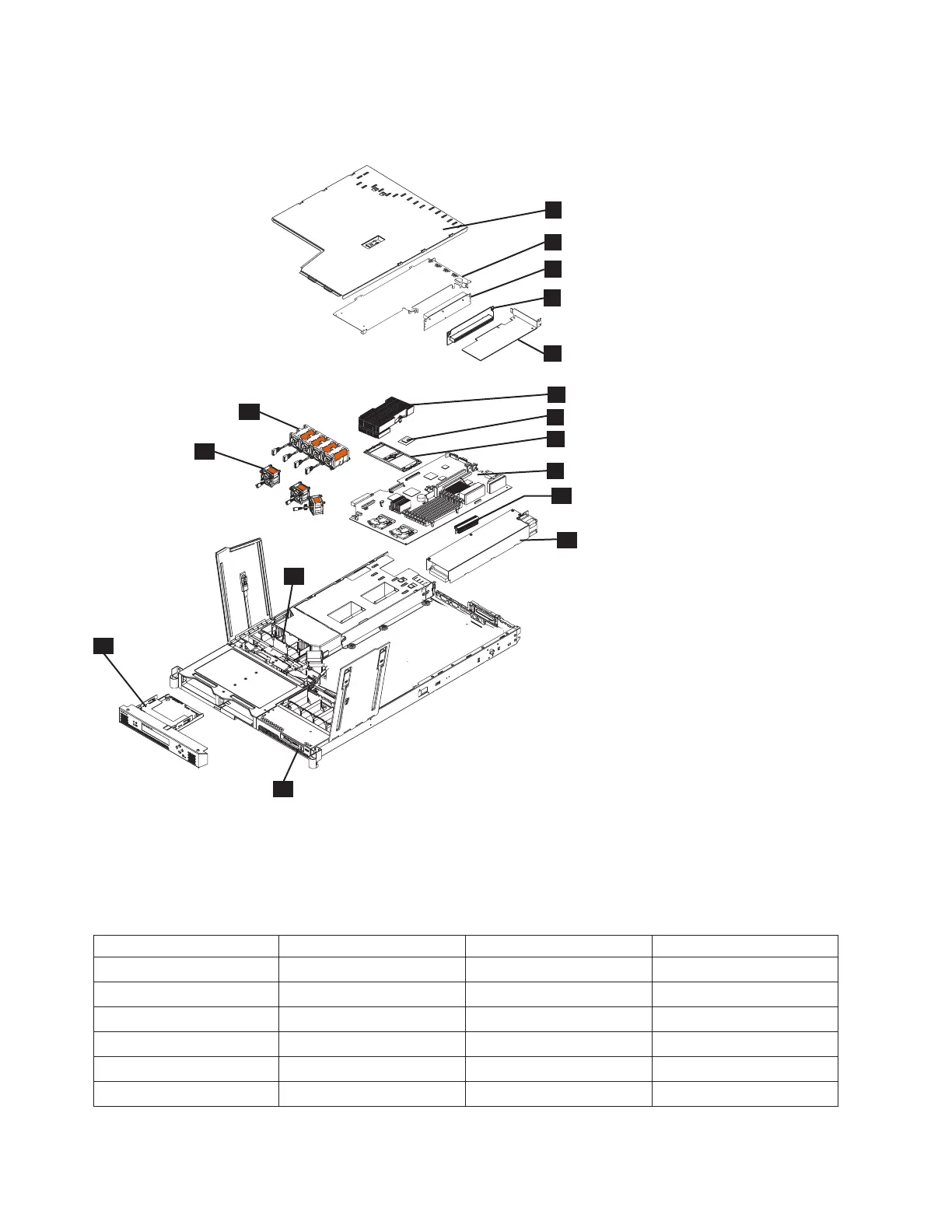

Figure 6 shows how the different parts for the SAN Volume Controller 2145-8F2 are assembled.
Table 19 provides the part numbers and a brief description of the frame assembly parts that are labeled in
Figure 6. The frame assembly comprises all of the parts except the service controller and Fibre Channel
cards. These parts are listed in Table 20 on page 19.
Table 19. SAN Volume Controller 2145-8F2 frame assembly
Assembly index Part number Units Description
64P7934 1 Frame assembly
-1 23K4219 1 Top cover
- 64P8332 1 80GB SATA HDD
-3 23K4211 1 Riser card, PCI (full height)
-4 90P1957 1 Riser card, PCI (low profile)
-6 90P5281 2 Heat sink
5
6
7
8
9
10
11
12
13
14
15
1
2
3
4
svc00109
16
Figure 6. Exploded view of the SAN Volume Controller 2145-8F2 node
18 IBM SAN Volume Controller Hardware Maintenance Guide
