10. Turn on the node.
Replacing the SAN Volume Controller 2145-8A4 operator-information panel cable
Use these instructions when you are prompted to replace the operator-information panel cable for the
SAN Volume Controller 2145-8A4.
Perform the following steps to replace the operator-information panel cable:
1. Connect the two connectors at one end of the operator-information panel cable assembly to the Front
USB connector
1
and the Operator-information panel connector
2
on the system board. The
connectors are keyed and it is important to insert the correct connector on the cable assembly onto the
correct connector on the system board.
1
Front USB connector
2
Operator-information panel connector
svc_bb1ka055

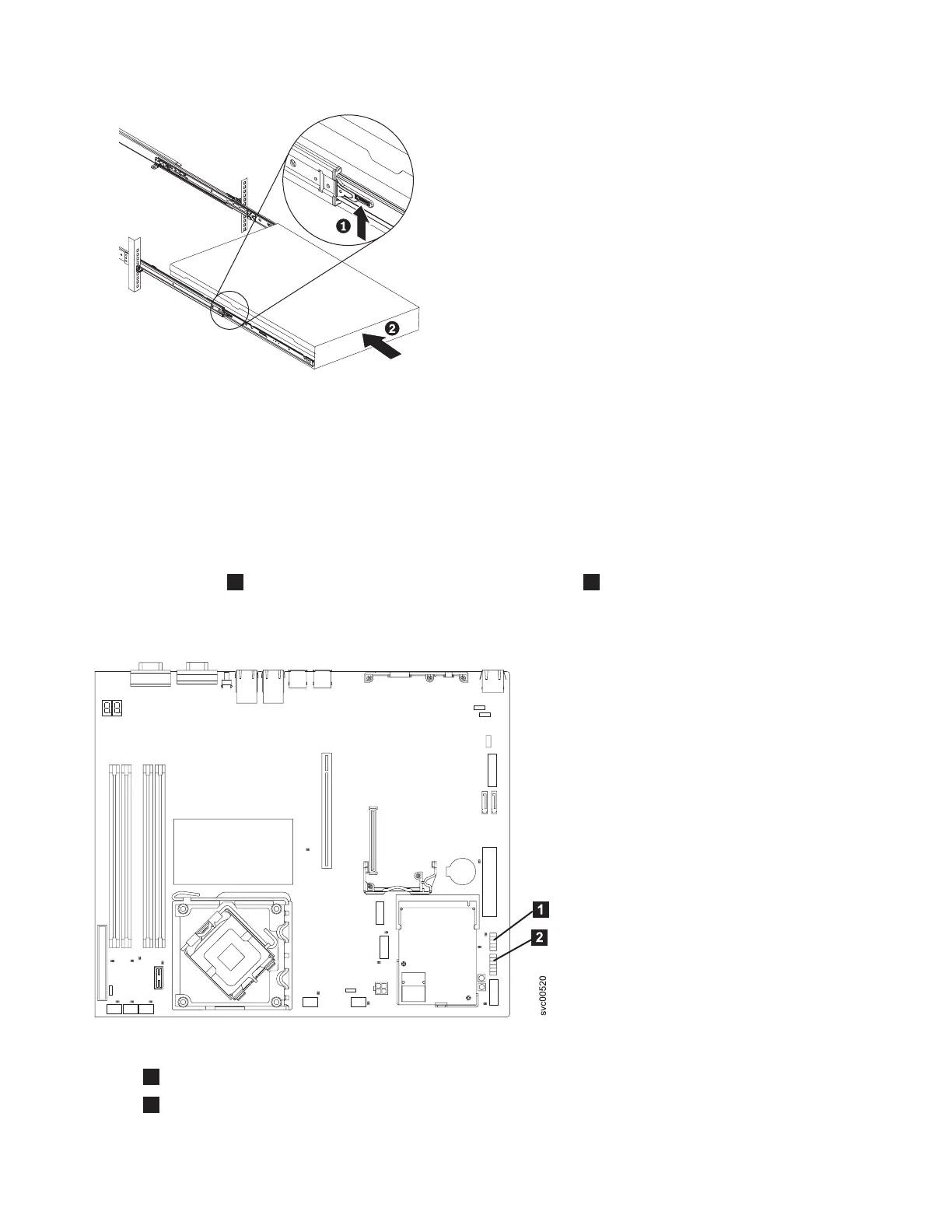

Figure 236. Raising the SAN Volume Controller 2145-CF8 or 2145-CG8 locking levers of the slide rails of the rack
Figure 237. Connectors for the operator-information panel on the SAN Volume Controller 2145-8A4 system board
238 IBM SAN Volume Controller Hardware Maintenance Guide
