Table 16. FRUs that are not referenced by SAN Volume Controller 2145-8G4 service procedures (continued)
Part number Quantity Description
39Y9507 1 Media bezel assembly
32R2823 1 3.5 in. SATA cartridge assembly
SAN Volume Controller 2145-8F4 parts
You might need to replace a SAN Volume Controller 2145-8F4 field replaceable unit (FRU).
Figure 5 shows how the different parts of the SAN Volume Controller 2145-8F4 are assembled.
Table 17 provides the part numbers and a brief description of the frame assembly parts that are labeled in
Figure 5. The frame assembly comprises all the parts except the service controller and Fibre Channel
cards. These parts are listed in Table 18 on page 17.
Table 17. SAN Volume Controller 2145-8F4 frame assembly
Assembly index Part number Units Description
31P0705 1 Frame assembly
5
6
7
8
9
10
11
12
13
14
1
2
3
4
svc00173

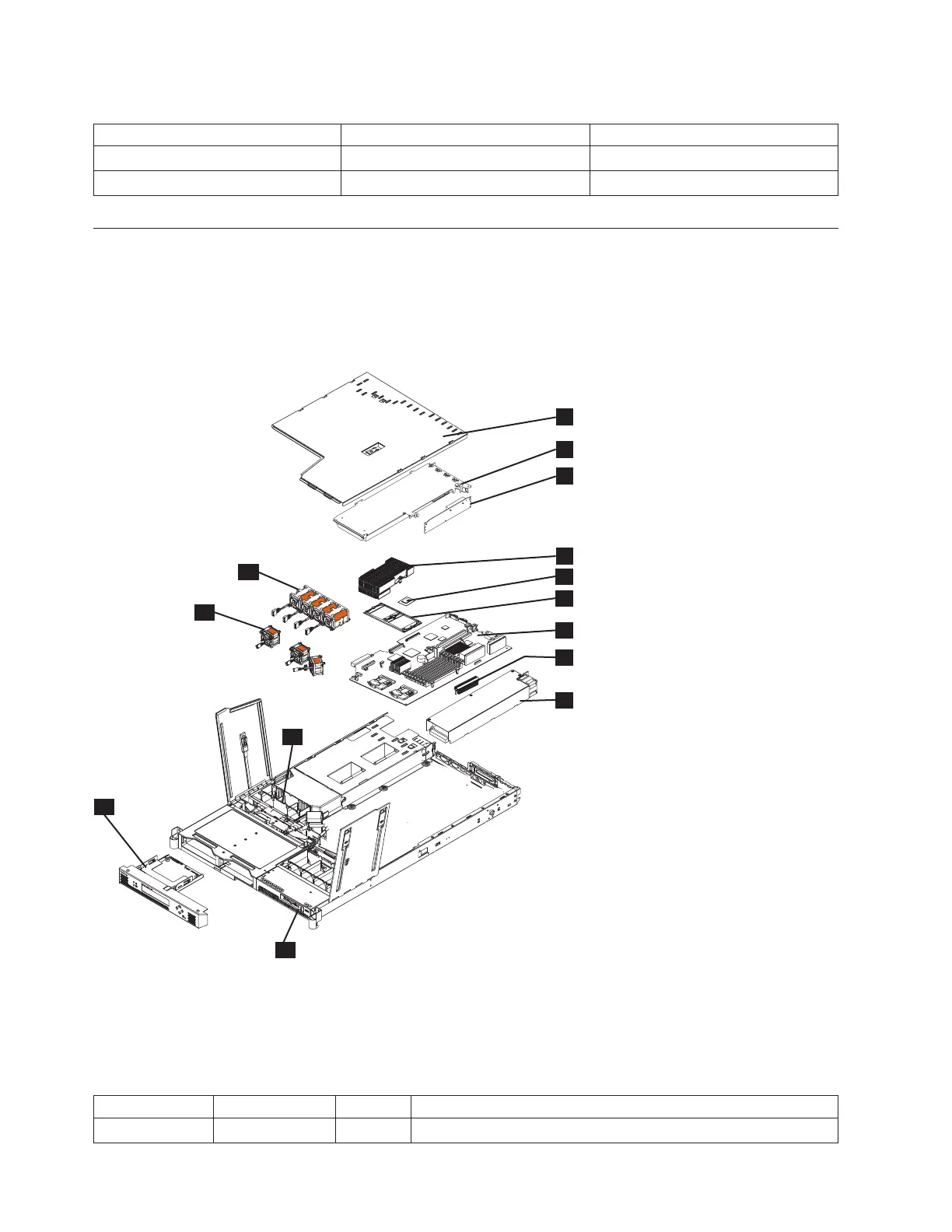

Figure 5. Exploded view of the SAN Volume Controller 2145-8F4 node
16 IBM SAN Volume Controller Hardware Maintenance Guide
