3. Slide the bracket jaw over the power cable.
4. Slide the bracket down the cable until it is next to the power plug and slightly to the right of where it
needs to be.
5. Place the bottom lip of the retention bracket in the node chassis as shown in Figure 27. Turn the
bracket at a slight angle, squeeze the top and bottom together, and position the top lip in place
behind the chassis backplane.
6. Slide the bracket to the left until the side lip of the retention bracket goes behind the screw. Tighten
the screw.
svc00480
1

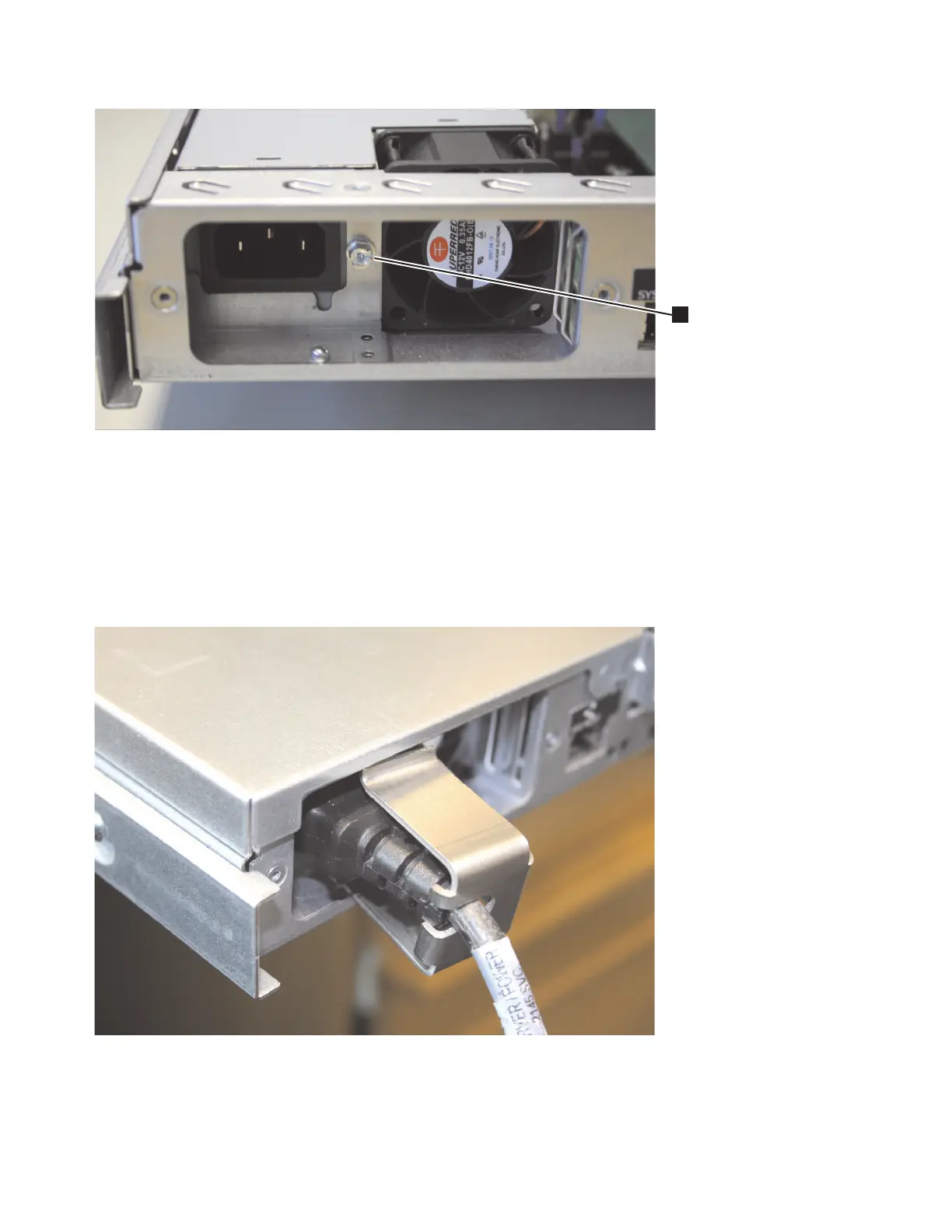

Figure 26. Retaining screw on the SAN Volume Controller 2145-8A4 node
svc00477
Figure 27. Installing the SAN Volume Controller 2145-8A4 cable retention bracket
42 IBM SAN Volume Controller Hardware Maintenance Guide
