Removing the SAN Volume Controller 2145-8G4 cable retention bracket
The SAN Volume Controller 2145-8G4 uses one of two different cable-retention brackets. Depending on
which bracket you have, use the appropriate instructions to remove and replace the cable-retention
bracket.
v If your cable-retention bracket looks like the bracket in Figure 20, go to “Removing the SAN Volume
Controller 2145-8G4 cable retention bracket - option A” on page 38.
v If your cable-retention bracket looks like the bracket in Figure 21, go to “Removing the SAN Volume
Controller 2145-8G4 cable retention bracket - option B” on page 38.
svc00363

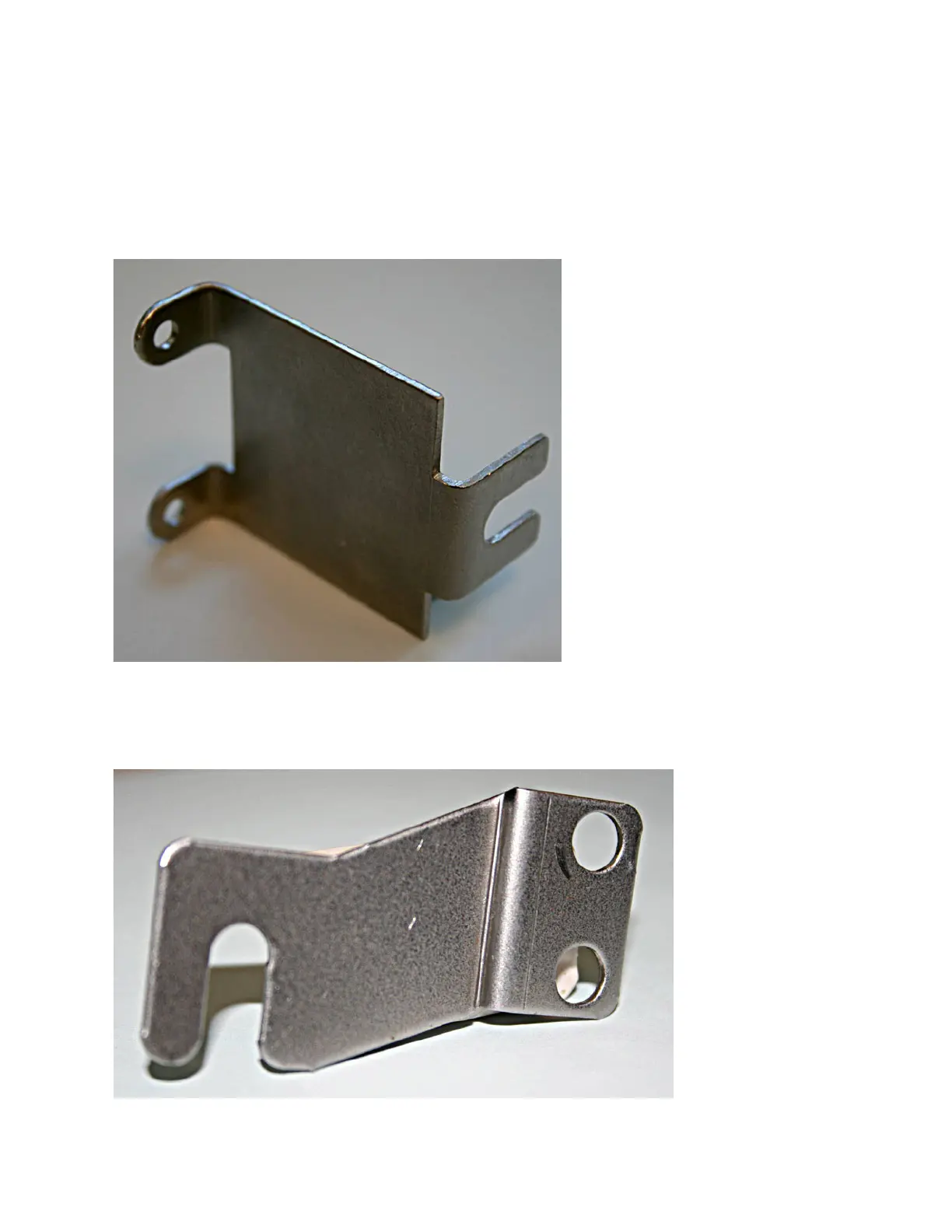

Figure 20. SAN Volume Controller 2145-8G4 cable retention bracket - type A
svc00362
Figure 21. SAN Volume Controller 2145-8G4 cable retention bracket - type B
Chapter 2. Removing and replacing parts 37
