12. Remove the five fan connectors along the front edge of the system board. Figure 279 on page 279
shows three of the fan connectors.

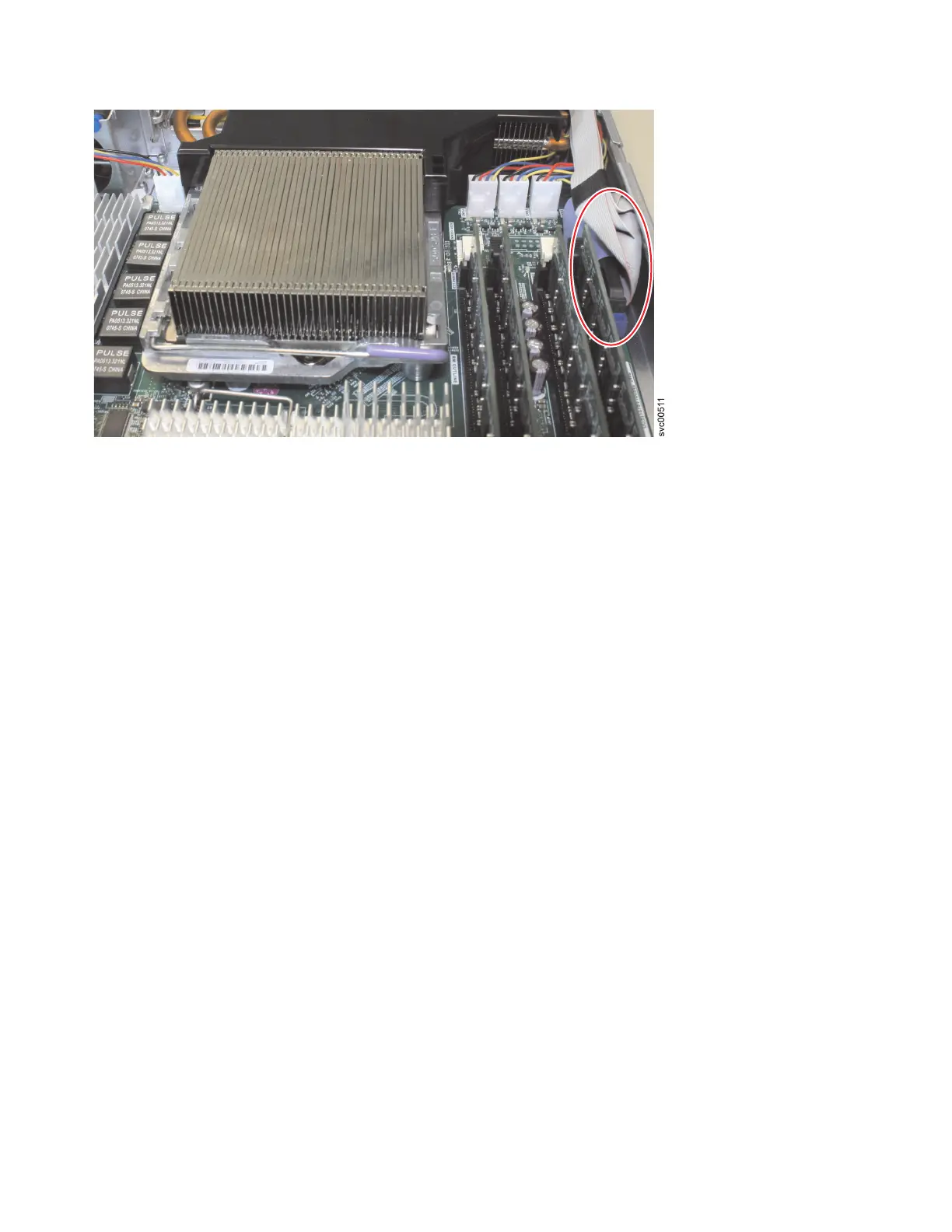

Figure 278. The IDE connector on the SAN Volume Controller 2145-8A4 system board
278 IBM SAN Volume Controller Hardware Maintenance Guide
